JD2 model 4 hydraulic tube tubing bender /air-hydr pump
JD2 model 4 hydraulic tube tubing bender /air-hydr pump

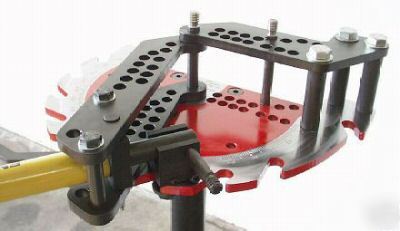

JD2 Model 4 Hydraulic Tubing Bender w/Air-Hydraulic Pump
Includes Bender, Air/Hydraulic Pump, and 10-ton 14" stroke cylinder.
* Bends round tubing 1/2" to 2-1/2" diameter.
* Bends square tubing 1/2" to 1-1/2".
* Bends schedule 40 pipe 1/2" to 2".
* Built-in degree indicator makes it easy to make accurate, repeatable bends.
* Frame and drive arms are CNC machined 1" and 3/4" steel plate.
* Metric and custom die sets are available and are priced closely to comparable size of inch series tooling (allow 2-3 weeks for special die delivery)
* Enerpac Air/Hydraulic Pump
* Includes 10,000 PSI hydraulic hose w/quick coupler
* Requires the use of an air compressor

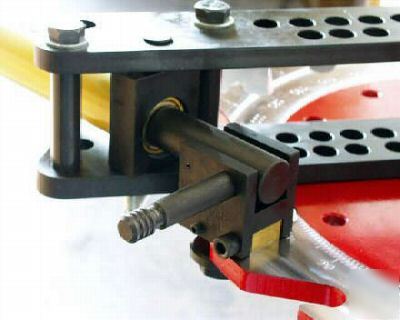

Engineered To Be Reliable !!! - Painstakingly designed to last for years in a hard working fabrication shop. The hydraulic cylinder for instance, swivels in a solid CNC machined steel block that pivots exactly at the cylinder's center, preventing side loads on the cylinder's internals. The pusher block,uses a unique rotating design and a swiveling bronze wear block so that the cylinder will not experience any up or down loading.

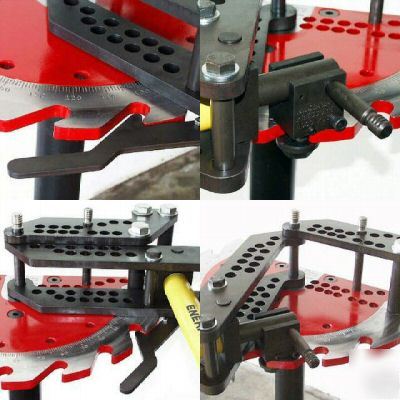

Self Locking, Hydraulic Operation !!! - The Model 4 uses a 10 ton single acting spring return cylinder with a stroke of 14". It operates up to 4000 p.s.i. With the recommended 14" stroke cylinder, 90 degree bends can be accomplished in less than two complete strokes and 180 bends typically require only three strokes. During bending, neither the die set nor the workpiece needs to be reset or touched in any way until the bending operation is complete. Using the spring loaded anti-springback lever, the Model 4 will lock the workpiece in position when the cylinder needs to be advanced to the next stroke position, therefore not allowing the workpiece to relax or shift in the bender. This makes possible much tighter radius bends in thinner wall material then can be accomplished on competing benders. Using a 14" stroke cylinder, the first bend stroke can be up to approximately 60 degrees. The second stroke will go to approximately 126 degrees. Bending speed is dependent upon the strength of the material being bent. Usually 6 to 10 degrees of bend per second will be realized. The 14" stroke cylinder takes 8 to 9 seconds to return from full extension. Add it all up and a typical 90 degree bend will take an effortless 20 to 25 seconds, depending on the operator's skill level.
* 36" tall mounting pedestal $135.00
* U-block (needed for using Model 3 dies, specific to each die size) $25.00 each
Mo. residents to add 7.725% sales tax.
Fire away with any questions you might have. We will be happy to answer them.
Be sure to add me to your favorites list!
Model 4 Bender Round Tube Die Sets
M4B Round Tube Die Set - 1/2" (2.25-CLR)
M4B Round Tube Die Set - 1/2" (3-CLR)
M4B Round Tube Die Set - 5/8" (2.25-CLR)
M4B Round Tube Die Set - 3/4" (2.25-CLR)
M4B Round Tube Die Set - 3/4" (3-CLR)
M4B Round Tube Die Set - 3/4" (4.5-CLR)
M4B Round Tube Die Set - 7/8" (3-CLR)
M4B Round Tube Die Set - 7/8" (4.5-CLR)
M4B Round Tube Die Set - 7/8" (5.5-CLR)
M4B Round Tube Die Set - 1" (3-CLR)
M4B Round Tube Die Set - 1" (3.5-CLR)
M4B Round Tube Die Set - 1" (4.5-CLR)
M4B Round Tube Die Set - 1" (5.5-CLR)
M4B Round Tube Die Set - 1 1/8" (3.5-CLR)
M4B Round Tube Die Set - 1 1/8" (4.5-CLR)
M4B Round Tube Die Set - 1 1/8" (5.5-CLR)
M4B Round Tube Die Set - 1 1/4" (3.5-CLR)
M4B Round Tube Die Set - 1 1/4" (4.5-CLR)
M4B Round Tube Die Set - 1 1/4" (5.5-CLR)
M4B Round Tube Die Set - 1 3/8" (4.5-CLR)
M4B Round Tube Die Set - 1 3/8" (5.5-CLR)
M4B Round Tube Die Set - 1 3/8" (6.5-CLR)
M4B Round Tube Die Set - 1 1/2" (4.5-CLR)
M4B Round Tube Die Set - 1 1/2" (5.5-CLR)
M4B Round Tube Die Set - 1 1/2" (6.5-CLR)
M4B Round Tube Die Set - 1 5/8" (5.5-CLR)
M4B Round Tube Die Set - 1 5/8" (6.5-CLR)
M4B Round Tube Die Set - 1 3/4" (5.5-CLR)
M4B Round Tube Die Set - 1 3/4" (6.5-CLR)
M4B Round Tube Die Set - 1 7/8" (6.5-CLR)
M4B Round Tube Die Set - 2" (6.5-CLR)
M4B Round Tube Die Set - 2-1/4" (6.5-CLR)
M4B Round Tube Die Set - 2-1/2" (6.5-CLR)
M4B Round Tube Die Set - 2-3/8" (6.5-CLR)
Model 4 Bender Sch. 40 Pipe Die Sets
M4B Pipe Die Set - 1/2" Pipe, .840" OD (3-CLR)
M4B Pipe Die Set - 3/4" Pipe, 1.050" OD (3.5-CLR)
M4B Pipe Die Set - 3/4" Pipe, 1.050" OD (4.5-CLR)
M4B Pipe Die Set - 1" Pipe, 1.315" OD (3.5-CLR)
M4B Pipe Die Set - 1" Pipe, 1.315" OD (4.5-CLR)
M4B Pipe Die Set - 1" Pipe, 1.315" OD (5.5-CLR)
M4B Pipe Die Set - 1 1/4" Pipe, 1.660" OD (4.5-CLR)
M4B Pipe Die Set - 1 1/4" Pipe, 1.660" OD (5.5-CLR)
M4B Pipe Die Set - 1 1/4" Pipe, 1.660" OD (6.5-CLR)
M4B Pipe Die Set - 1 1/2" Pipe, 1.900" OD (5.5-CLR)
M4B Pipe Die Set - 1 1/2" Pipe, 1.900" OD (6.5-CLR)
M4B Pipe Die Set - 2" Pipe, 2 3/8" (6.5-CLR)
Model 4 Bender Square Die Sets
M4B Square Die Set - 1/2" (3-CLR)
M4B Square Die Set - 1/2" (5.5-CLR)
M4B Square Die Set - 3/4" (3-CLR)
M4B Square Die Set - 3/4" (4.5-CLR)
M4B Square Die Set - 1" (3.5-CLR)
M4B Square Die Set - 1" (4.5-CLR)
M4B Square Die Set - 1" (5.5-CLR)
M4B Square Die Set - 1" (6.5-CLR)
M4B Square Die Set - 1 1/4" (4.5-CLR)
M4B Square Die Set - 1 1/4" (5.5-CLR)
M4B Square Die Set - 1 1/4" (6.5-CLR)
M4B Square Die Set - 1 1/2" (5.5-CLR)
M4B Square Die Set - 1 1/2" (6.5-CLR)
At the present time, JD2 is relocating their facility. Lead times for items not in inventory may be 4-6 weeks. If you are in a hurry for your items please check with us for availability @
