> 19" x 144" leblond engine lathe, s/n #7E1673, 12" 3-jaw
19" x 144" leblond engine lathe, s/n #7E1673, 12" 3-jaw
19" x 144" leblond engine lathe, s/n #7E1673, 12" 3-jaw

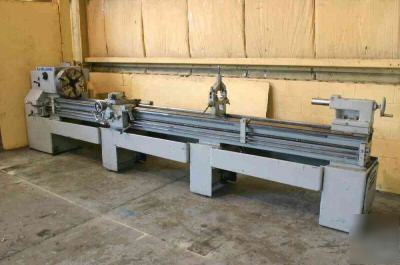

19" X 144" LEBLOND ENGINE LATHE
SERIAL ......................... 7E1673
SWING OVER WAYS ................ 19-1/4´´
SWING OVER CROSS SLIDE ......... 12-1/4´´
DISTANCE BETWEEN CENTERS ....... 144´´
SPINDLE SPEEDS ................. (16) 23 TO 1000 RPM
FEEDS .......................... (48) .0018 TO .104 IPR
THREADS ........................ (48) 2 TO 112 TPI
DIAMETER OF SPINDLE HOLE ....... 1-3/4´´
HARDEN WAYS .................... YES
CHUCK .......................... 12´´ 3-JAW
STEADY REST .................... 6´´
THREAD DIAL .................... YES
REMOVABLE CHIP PANS ............ YES
MOTOR .......................... 7-1/2 HORSEPOWER
CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
