3500 gal harris reactor, 316 s/s, 125/100# - 24655
3500 gal harris reactor, 316 s/s, 125/100# - 24655

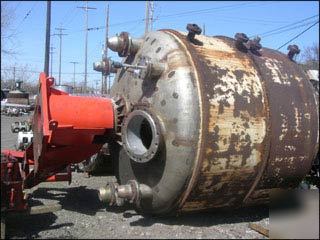

"ONE (1) Used 3500 gallon Harris Reactor, 316 stainless steelconstruction, 8'6" diameter x 7' straight side, dished top and bottom, rated 125 PSI @ 350 degrees F internal, split coil bottom jacket, conventional jacket on straight side with 3" nozzles, jacketed for 100 PSI @ 350 degrees F, anchor agitator with bottom and side wall scrape, 25 HP Proquip agitator drive, 11 RPM output speed, 230/460 volt XP motor, 18" manway, with (3) 8", (4) 6", 3" top nozzles, 12" center bottom outlet, 3" offset bottom outlet, serial no. 1268, National Board No. 265, New 1989.
http:// /images/24655-01.jpg
http:// /images/24655-02.jpg
http:// /images/24655-03.jpg
http:// /images/24655-04.jpg
http:// /images/24655-05.jpg
http:// /images/24655-06.jpg
http:// /images/24655-07.jpg
http:// /images/24655-08.jpg
