Dwyer anderson flotect (V6EPB -b-s-2B) 3/4" flow switch
Dwyer anderson flotect (V6EPB -b-s-2B) 3/4" flow switch

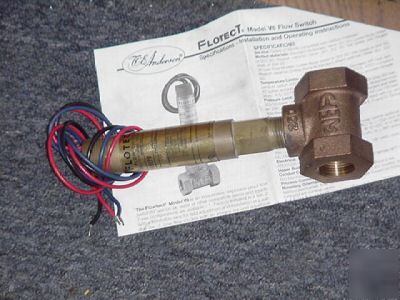

THIS AD IS FOR 1; BRAND NEW !!! DWYER / W.E. ANDERSON FLOTECT TYPE V6EPB SERIES BRASS FLOW SWITCH !!! PT# (V6EPB-B-S-2-B), SPECS; 3/4" NPT,
Standard V6 Series Flotect® Flow Switch
Brass Housing with DPDT Snap Switch
Economical and Dependable Flow Switch
Monitor Flow in 1/2" to 2" Pipe
Explosion Proof & Leak Proof Body
Surprisingly compact, the Series V6 Flotect® Flow Switch is engineered to specifically monitor liquid, gas, or airflows. Operation is simple and dependable with no mechanical linkage as the flow switch is magnetically actuated. The lower body holds the flow vane and one magnet, which controls the switch actuating magnet in the separate upper housing. In most applications the switch is normally off with the pipeline flow forcing the vane against the vane spring. As the flow decreases the vane spring pushes back the vane, actuating the switch to signal an alarm or shutdown. Tees are available for installation in pipelines from 1/2Ë to 2Ë, with bushings added the unit is easily adapted to 1/4Ë and 3/8Ë piping.
Service: Liquids, Air or Gases
Choice of models in a tee with calibrated vane or field adjustable trimmable vane
Wetted Material :Check Model Number
Switch Type: SPDT snap switch standard, DPDT snap Switch Optional.
Leak Proof lower body machined from bar stock
Enclosure: Explosion and Weather Proof
Pressure Ratings: High pressure rating of 1000 psig with brass body and 2000psig on the 316 body
Conduit Connection: 3/4" Male NPT Standard, 3/4" female NPT on junction box models
Process Connection: 1/2" male NPT on models without Tee's.
Available Standard V6 Series Flotect® Flow Switch
V6EPB-B-S-2-B-MT flow switch; brass upper housing, brass lower housing, brass tee with 3/4" NPT connections, SPDT snap switch, and high temperature option
Low Flow Model (1/2" NPT connections)
(For LF Model no tee material chosen, tee material matches lower housing choice)
V6 Set Point Charts - Factory Installed Tee
Popular Models with Brass Housing and DPDT Switch
..............................................*** .. THANK YOU AND GOOD LUCK !!...
