Afm 1/2" x 13' hydraulic guillotine shear, excellent
Afm 1/2" x 13' hydraulic guillotine shear, excellent

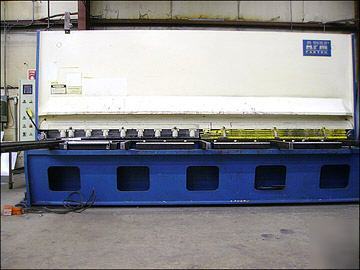

AFM HYDRAULIC GUILLOTINE SHEAR
S/N CH 35/2-00326-T “ NEW IN 2000â€
Cutting Capacity, Mild Steel . . .50â€
Cutting Capacity, Stainless . . 3/8â€
Cutting Length . . . . 4,000 mm
Cutting Length, max. . . . 157â€
Cuts per Minute / full length . . 8 – 14
Backgauge Controller . . . Elgo
99 Step Programmable . . . Yes
Approximate Weight . . . 38,600 lbs.
Rake Angle / Full Capacity . . 2.75 degrees
Holddown Urethane Pads . . Yes
Approximate Overall Height . . 102â€
Approximate Overall Width . . 116â€
Approximate Overall Length . . 209â€
* NC Programmable Backgauge with 99 Positions
* Three Position Adjustable Rake Angle
* Ball Transfer Filler Plates
* High Carbon High Chrome Blades
* Cutting Repeatability of +- 0.0004â€
