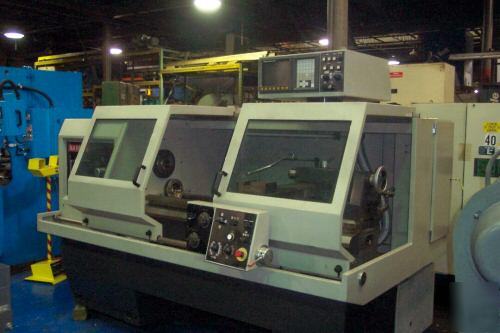

HERE WE HAVE A NARDINI CNC/MANUAL TEACH LATHE. THIS MACHINE IS IN PRESTINE CONDITION. ON HOURS READ 3347. SPINDLE ON HOURS READ 808. THIS NARDINI LATHE COMES WITH CANNED CYCLES TO INCLUDE ROUND/CORNER, CIRCLE, STRAIGHT LINE, ROUGH, THREADING, GROOVING, DRILLING.
THIS NARDINI TEACH LATHE CAN BE RUN IN THE TEACH MODE, MEANING YOU CAN MANUALLY TURN YOUR PART AND THE MACHINE WILL AUTOMATICALLY PROGRAM YOUR APPLICATIONS TO THE FINISHED PART.
THIS MACHINE CAME OUT OF GOVERNMENT SURPLUS STORAGE AND IS IN EXCELLENT RUNNING CONDITION. YOU CAN INSPECT THIS MACHINE UNDER POWER IN MN. WE WILL LOAD ON YOR TRUCK FOR FREE. ANY QUESTIONS CONTACT JIM AT (***)-931-7974. THANK YOU.
NARDINI CNC/MANUAL TEACH LATHE. I PUT EZ PATH STYLE IN THE TITLE TO DRAW INTEREST.
HEIGHT OF CENTERS...........................................8.21 / 32" - 220 INCH/MM
DISTANCE BETWEEN CENTERS......................38.3 / 16" - 970 INCH/MM
DISTANCE BETWEEN CHUCK AND CENTER....33.15/32" - 850 INCH/MM
TOOLING LENGTH BETWEEN CHUCK AND CENTER WITH QUICK CHANGE TOOL POST..............................................31.1/2" - 800 INCH/MM
TOOLING LENGTH BETWEEN CHUCK AND CENTER WITH AUTOMATIC TOOL POST........................................28.3/4" -730 INCH/MM
SWING OVER BED.....................................................17" - 440 INCH/MM
SWING OVER THE CROSS SLIDE.........................9.41.64" - 245 INCH/MM
CROSS SLIDE TRAVEL...........................................11.13/16" -300 INCH/MM
TOOL SECTION...............................................3/4" X 3/4" - 20 X 20 INCH/MM
BED WIDTH..................................................................13.3/8" 340 INCH/MM
BED HEIGHT............................................................13.25 /32" - 350 INCH/MM
SPINDLE NOSE...........................................................A2-6"
SPINDLE BORE...........................................................2" - 52 INCH/MM
TAPER IN REDUCTION SLEEVE.............................4 MT
SPEEDS NUMBER.......................................................INFINITLY VARIABLE
SPEEDS RANGE ( I, I I, III)...........................................1 - 3000 RPM
QUICK LONGITUDANAL FEED..................................295" - 7500 MM/MIN.
QUICK TRANSVERSE FEED.......................................295" - 7500 MM/MIN.
QUILL DIAMETER..........................................................2.23/64" - 60 INCH/MM
QUILL TRAVEL............................................................8.21/32" - 220 INCH/MM
QUILL INTERNAL TAPER............................................4 MT
MAIN MOTOR (AC).........................................................10 HP
COOLANT PUMP............................................................0.33 HP
APPROXIMATE WEIGHT........................................3800 LBS
MACHINE SIZE.........................................107" x 67" - 2720 x 1700 INCH/MM

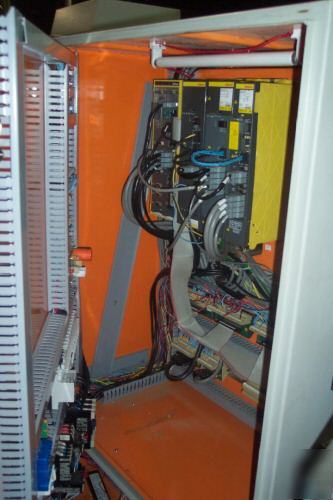

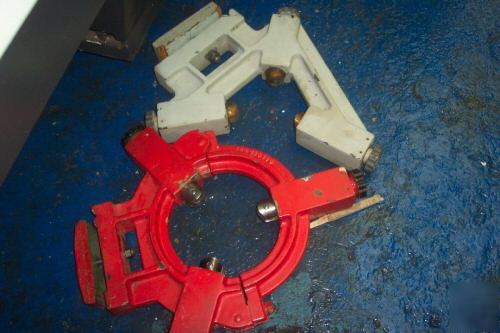

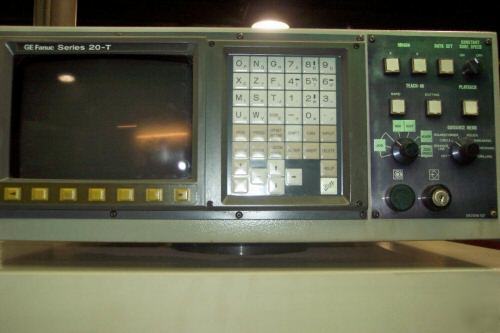

FANUC 20- TA CONTROL, COOLANT PUMP, CHIP TRAY, 2 STEADY RESTS, EXTRA ADAPTIVE CHUCK MOUNT, MANUALS.
