Warner & swasey, fanuc 10TF, 15"chuck 25HP, cnc lathe
Warner & swasey, fanuc 10TF, 15"chuck 25HP, cnc lathe

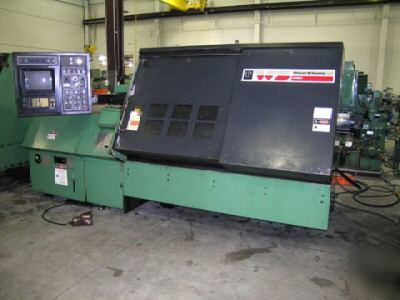

Liberty Machinery Company-You are looking at a Warner & Swasey WSU, Fanuc 10TF, 15"Chuck, 4-1/2" Bore, 25 HP, 40" c.c, Hydraulic Tailstock-Serial No. 3331137/103200Condition - Used
Swing Over Carriage ( Useable ) 15"
Nominal Turning Length Between Centers 40"
Spindle Speed Range 43 - 3000 RPM
Motor 25 HP, D.C., 240/3/60 Cycle
Cutter Size 1-1/4" x 1-1/4" x 5"
Boring Bar Diameter - Maximum 2-1/2"
Approximate Dimensions 207" L x 84" W x 80" H
Approximate Weight 22,000 Lbs.
-EQUIPPED WITH: GN Fanuc 10TF 2-Axis CNC Control.
CRT Display with Expanded Memory
Hydraulically Operated Tailstock
15" 3-Jaw Counter-Centrifugal Chuck with Thru-hole Hydraulic Actuator
Tool Probe for Automatic Gauging
Revolving Stock Stop for 11" A2 Sindle
Hi-Lo Chucking, Chucking Controls & Foot Pedal
Misc: Turret Tooling: Turning,Facing,Threading,Plain,Boring Heads.
Temporary Email: jcook@dontscrapit.com (Juliet Cook)
