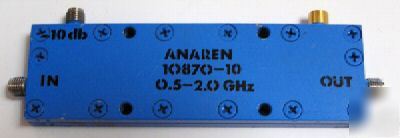

Anaren-10870-10 0.5-2.0 GHz 10 dB Directional Coupler
Anaren-10870-10 is a 10 dB directional coupler with a frequency range of 0.5-2.0 GHz, Mean coupling of 10 ±.5 dB. Coupling Frequency Sensitivity is ±0.75 dB Max. Directivity is 17 dB Min, 22 dB Max. Insertion Loss is 0.50 dB Max. Input VSWR is 1.25:1. Max CW Power is 50 W Forward, 5 W Reverse. Impedance is 50 Ohms.
This directional coupler uses gold-plated stripline circuitry, solid aluminum housing and stainless steel SMA(f) connectors.
