Lot of 8 - firex 120V ac/dc ionization smoke alarms
Lot of 8 - firex 120V ac/dc ionization smoke alarms

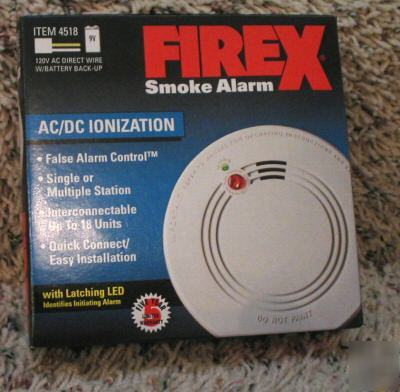

LOT OF 8 FIREX 4518 IONIZATION SMOKE ALARMS
120v AC DIRECT WIRE w/ BATTERY BACKUP
The Firex 4518 Smoke Alarm is an ionization 120V AC smoke alarm with battery back-up for single or multiple station use. It includes a False Alarm Controlâ„¢ feature which allows the user to quiet an unwanted alarm for up to 15 minutes. The 4518 has an 85 decibel horn, test switch and separate lighted power and alarm LED indicators; the green â€power on†LED confirms constant AC power and the red LED displays alarm/battery status.
This unit mounts to any single or 4†octagon junction box or square-to-round drywall ring and has 8†long pigtails with a Quick Connect harness for permanent connection. The 4518 is interconnectable up to 18 units, 6 of which may be Firex heat alarms. When interconnected with other Firex smoke alarms, the unit that initiates an alarm will display a rapidly flashing red LED while the other interconnected alarm LEDs remain extinguished. This Firex unit should be placed in single-family households or in each individual living unit of multiple-family buildings.
False Alarm Control™ — Quiets unwanted alarms for up to 15 minutes
9 Volt Battery Back-up (battery included) — provides added protection in the event of a power failure
Interconnects with other Firex smoke alarms and heat alarms — Compatible with other contractor preferred Firex products
Two separate lighted LEDs — Green â€power-on†LED confirms constant AC power and red LED displays alarm/battery status
Incorporates Firex installer-focused innovations — Fastest and easiest installation available
Factory sealed housing — Prevents tampering and provides outstanding durability
Attractive low profile design — Our contemporary StyleLine design is a favorite among consumers
Why Install a Firex 4518(C) Smoke Alarm?
The 4518 smoke alarm provides contractors and homeowner‘s with the reliable and trouble-free performance they expect from Firex...the market leader in fire safety products. Firex developed the False Alarm Controlâ„¢ feature to quiet unwanted alarms as a safety precaution to discourage users from removing the battery during a non-threatening alarm. It meets building code requirements where DC battery back-up is required and is recommended for all smoke alarm installations to provide added fire protection in the event of a power failure. With safety features such as battery â€lock-out†and the tamper-resistant locking pin as well as state-of-the-art production testing equipment, the Firex 4518 provides superior fire protection and convenience.
Up to 18 Firex devices maximum:
Firex smoke alarm items 4418(C) (model AD), 4518(C) (model ADC), 4480 (model PAD), 5000 (model FADC), Firex heat alarm item 5700 (up to 6 heat alarms max.)
120V AC, 60Hz, 50mA max, 9 volt Battery Back-up
This smoke alarm should be installed in accordance with the NFPA’s Standard 72 (National Fire Protection Association, Batterymarch Park, Quincy, MA 02269) and any local codes that apply.
Use #18 AWG minimum solid or stranded wire. When interconnecting, maximum wire length between any two is 1,500 feet for #18 AWG or 4,000 feet for #14 AWG (20 OHMS loop resistance).
DO NOT connect to any other type or model of heat or smoke alarm. Connect smoke or heat alarms to a single AC branch circuit. If local codes do not permit, be sure the neutral wire is common to both phases.
