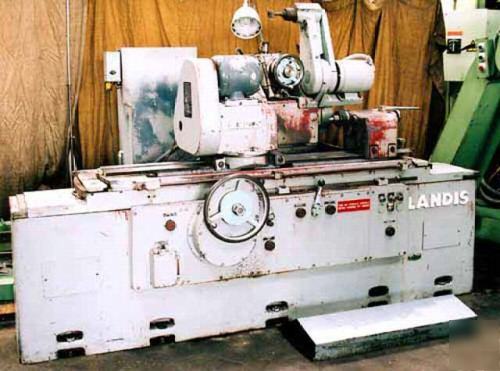

14" X 36" LANDIS TYPE 3R UNIVERSAL CYLINDRICAL GRINDER
Motor Driven With 3 HP, 3 Phase, 60 Cycle AC Wheelhead Motor. ¾ HP DC Headstock Motor. 2 Hp Internal Grinding Spindle. ¼ HP Spindle Lubrication Motor. 2 HP, 3 Phase, 60 Cycle AC Hydraulic Motor. MD Coolant System. Complete With Electrical Control.
Combination Live/Dead Spindle Headstock. Removable Swing Type Internal Grinding Attachment. Power Handwheel Positioning. Rapid Power Wheelhead Positioning. Mechanical Micro-Swivel For Quick And Accurate Taper Correction. Table Locator. Dial Indicator.
Maximum Swing over Table: 14-31/32"
Table Traverse Speed: 2-240 IPM
Traverse per Turn of Handwheel Slow: 0.100"
Traverse per Turn of Handwheel Fast: .750"
Swivel Table Graduated: Degrees Included Angle: 19
Swivel Table Graduated: Inches Per Foot: 4.25"
Headtstock Work Speeds (8): 72-400 RPM
Headstock Swivel Range : 120 Deg.
Maximum Grinding Wheel Size: 30" x 2" x 12"
Grinding Wheel Spindle Speed: 1800 RPM
Maximum Hydraulic Infeed: 0.090"
Grinding Wheel Head Swing Range Upper: 180
Grinding Wheel Head Swing Range Lower: 60 CW - 30 CCW
Approximate Weight: 12,500 lbs
