Digital differential thermometer supco DDT2
Digital differential thermometer supco DDT2

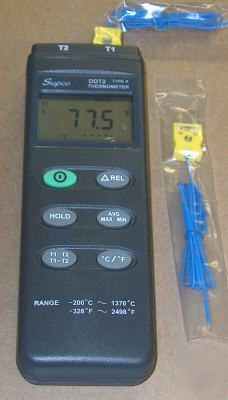

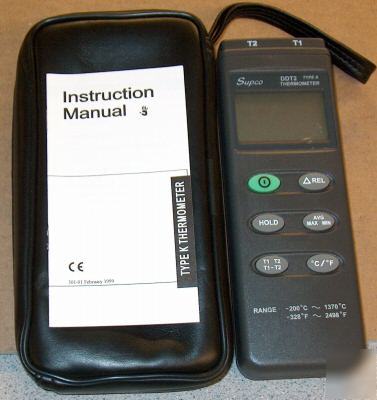

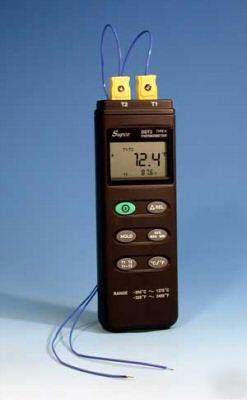

IGITAL DIFFERENTIAL THERMOMETER w/Case
With it’s Dual Display, the DDT2 provides instant measurements for two Temperature points (T1,T2) and their difference (T1-T2). The Min/Max/Avg function allows up to eight data sets to be recorded. It is the ideal tool for superheat measurements.
With it’s Dual Display, the DDT2 provides instant
measurements for two Temperature points (T1,T2)
Optional PC Software (DDT2S) allows for analysis
• Dual K-Type Thermocouple Inputs
• Temperature Differential Measurement (T1-T2)
• Records Up to 8 Min/Max/Avg Measurements
• Relative Function provides instant Temperature
Difference between successive measurements
Range -328°F to +2498°F (-200°C to +1370 °C)
Resolution -200°F to +200°F 0.1°F; else 1°F
-200°C to +200°C 0.1°C; +200°C to+ 1370°C
Accuracy -328°F to -400°F ±(0.5% reading +2°F)
-200°F to +200°F ±(0.3% reading +2°F)
+200°F to +400°F ±(0.5% reading +2°F)
+400°F to +2498°F ±(0.3% reading +2°F)
-200°C to +200°C ±(0.3% reading +1°C)
+200°C to +400°C ±(0.5% reading +1°C)
+400°C to +1370°C ±(0.3% reading +1°C)
T1-T2 Measurement ±(0.5% T1-T2 reading +2°F) or
Operating Condition +32°F to +122°F (0°C to +50°C); 0 to 80% RH
Storage Temperature +14°F to +140°F (-10°C to +60°C); 0 to 80% RH
Input Protection 60VDC or 24Vrms AC maximum
Battery 9V, NEDA 1604, IEC 6F22, JIS 006P (included)
Battery Life Approximately 100 hours with alkaline battery
Dimension 7 1/4² X 2 1/2² X 1 3/16²(184mm X 64mm X 30mm)
Use very little, mainly for Counter Sample
