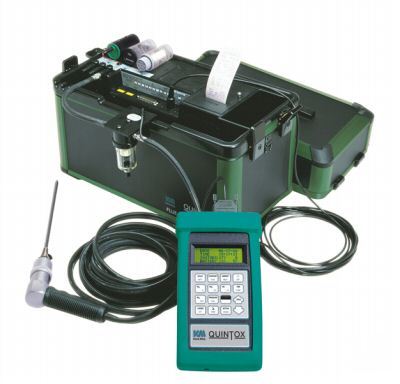

UEI Kane May KM9106/P "Quintox" Combustion Analyzer
Brand New with Full Factory Warranty
Visit My Store ,Check out my other items! for More Professional Test Tools
The KM9106/P analyzer measures efficiency and emissions from any industrial, commercial or residential heating appliance. It also easily measures emissions from engine exhaust, providing the complete information required by your air regulatory authority.
The KM9106/P is simple to use via its unique remote logging handset, which has a 4-line programmable backlit display. The unit also features a built-in printer, easily accessible particle and SO2 filters, and has an integral battery with changer.
The unit can also be upgraded to house four additional sensors to meet future emission requirements, making it the most versatile, rugged portable combustion analyzer available today.
* Measures O2 and CO (0 to 10,000 ppm) and temperature
* Calculates efficiency, net stack temperature, CO2 and losses
* Measures flue and inlet temperatures simultaneously.
* Accurate Carbon Monoxide sensor with hydrogen compensation.
* Over 70 pre-programmed fuels.
* 15' handset cable & 15' probe hose with 1,000° F tolerance
* Operate and view combustion information with the remote handset.
Reference toxic gas reading when taking toxic gas readings to comply with a regulatory body, you normally have to reference them to a certain oxygen level. The Quintox will automatically display to a specific reference in either ppm or mg/m3. This type of referencing is sometimes termed 'diluted and undiluted readings' or 'oxygen free readings' when calculating to zero O2.
For maximum efficiency all combustion parameters are shown on the handset's large 4 line display, to allow the operator to see changes to boiler settings instantly. Each line of the display can be configured for Oxygen, Carbon Monoxide, Carbon Dioxide, Efficiency, Flue and Net Temperature and Excess Air. Over 70 different fuels are programmed into the Quintox to allow it to calculate values all over the world. A custom fuel option is also built-in to accommodate those fuels not yet established.
Features transferred to the new KM9106 are:
* Long life Oxygen sensor with 2 year warranty.
* Accurate Carbon Monoxide sensor with Hydrogen compensation.
* On the spot recording with integral printer.
* Operate and view combustion information with a remote handset.
* Powerful pump to draw gas supply from flue.
* Clear backlit 4 line display, displays preset pages or personally configured individual screens.
* Tactile keypad is simple to use.
* Handset stores up to 1926 boiler tests.
* Remote handset with protective rubber boot.
The need for longer term monitoring on all combustion plants is growing and the Quintox has had features added to allow it to meet these needs, these features are included as standard or options:
* 'Fireworks' Windows software to display in graphical form the running profile of a boiler.
* Automatic water extraction, allowing the Quintox to operate unattended.
* Purge solenoids allow fresh air on a timed basis or switch between high and low CO sensors.
Complete User Manual & Data Sheet
