10SQ05-160 ½hp,115V,2W, grundfos 3" well pump 96160167


10SQ05-160 ½hp,115V,2W, grundfos 3" well pump 96160167

This Listing Includes the following:

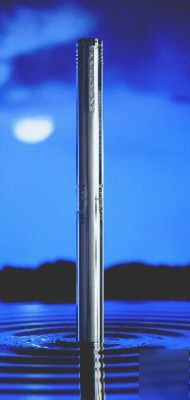

Grundfos 3" Submersible Pump & Motor Model 10SQ05-160Part Number 961601671/2 Horse Power, 3450 RPM, 115volt, 1 phase, 2 wire with ground {Control Box Not Required} Suitable for wells 3" to 6" in diameter1.25" fNPT Discharge Port
NEED A DIFFERENT PUMP? WE HAVE THEM ALL!! FIND IT BY AT EARTHMOVEMENT'S E-BAY STORE
NOTE: Sizing a well pump can be tricky. If you are unsure of which pump is best for you, please contact Eric (***) 549-6214 or Grundfos applications (***) 676-4201. They will help you pick the best pump for your installation.
Neither Earth Movement nor Grundfos will accept the return of a used pump unless it is a warranty issue. Misapplication or incorrect sizing of a pump is NOT considered a warranty issue.
We offer Expert Technical Support and
this pump system is covered by the
Grundfos Two (2) Year Factory Warranty.
Pumps sold on E-Bay by people who are
NOT Factory Authorized Distributors
may not be covered by the Factory Warranty.
* FACT: Grundfos will only process a warranty claim through the Factory Authorized Distributor who sold the pump.
* FACT: No Authorized Grundfos distributor will process a warranty claim for a pump they did not sell.
In the unlikely event of a problem we can, have, and will continue to quickly and professionally meet your pump warranty needs.
Grundfos SQ Series Submersible Pumps - In a class of their own
The beginning of the pump revolution starts today.
Grundfos has broken the mold to design a radically new submersible pump that will bring about a whole new era in pumping equipment. Grundfos is proud to introduce the new SQ Series of submersible pumps.
Models offer five flow sizes from 5 to 30 gpm and a horsepower range of 1/3 to 1.5 Hp.
SQ pumps operate at a constant speed much like today’s conventional pumps. The difference between it and today’s pump is that you get all the added benefits of an electronically controlled permanent-magnet motor, which cannot be accomplished with a conventional induction motor. The SQ pumps are available for single-phase power and use a simple 2-wire design, making installation easy.
SQ - Features and Construction
* 1/3 - 1.5 Hp Integral motors
* High motor and pump efficiencies
* Built in dry-run protection
* Overload / locked rotor protection
* Over voltage / under voltage protection
* Over temperature protection
* Multiple frequency input (50 - 60 Hz)
* Pump and motor can be separated
* High starting torque (even at low voltages)
* Serviceable pump and motor
Reliable Check ValvesCheck Valve
Reliable built-in spring loaded check valves let you operate the pump in any position from vertical to horizontal.
The SQ motors are based on a permanent-magnet rotor which produces high efficiency output within a wide load range. The high and flat efficiency curve of the permanent-magnet motor allows us to cover a wide power range with the same motor, as compared to conventional AC motors. For SQE pumps, this means three motors to cover the horsepower range from 1/3 to 1.5 Hp.
Advanced ElectronicsElectronics
By combining advanced electronics, permanent-magnet motors, and Grundfos' own micro-frequency converter, we are now able to control and communicate with pumps in ways never before possible. A few of the features that come out of this combination are Constant Pressure Control, Soft-Start and integrated Dry-Run Protection.
NOTE: Sizing a well pump can be tricky. If you are unsure of which pump is best for you, please contact Eric (***) 549-6214 or Grundfos applications (***) 676-4201. They will help you pick the best pump for your installation.
Neither Earth Movement nor Grundfos will accept the return of a used pump unless it is a warranty issue. Misapplication or incorrect sizing of a pump is NOT considered a warranty issue.
SQ- Technical Documentation Downloads
SQ/SQE Installation & Operating Instructions
The Following Models are also Available in our E-Bay Store. Click the Models below to go to our Grundfos 3" Well Pump Store Page
1. Checks and Money Orders Payable to:
1008 Summers School Road
Unites States of America
A $25 fee will be charged for returned checks.
please contatc Eric (***) 549-6214
* Warranty Returns are covered by factory warranty.
* Non-Warranty Returns are subject to a factory imposed 25% restocking charge. (NON-NEGOTIABLE)
* Non-Warranty returns not accepted on used equipment.
* You have 30 days in which to return a unit for any reason other than a warranty claim.
