> CT518D plasma cutter/tig/stick welder 110/240VAC CT518D
CT518D plasma cutter/tig/stick welder 110/240VAC CT518D
CT518D plasma cutter/tig/stick welder 110/240VAC CT518D

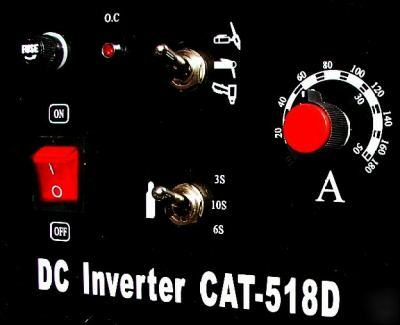

This is a THREE-IN-ONE Inverter Plasma Cutter (50 A) / Tig Welder (180 A) / Arc Welder (160 A). You would have to purchase 3 separate machines to do what this ONE machine can do!
Using this portable plasma cutter is cheaper than Oxyacetylene after just a few cuts. Less cleaning, less maintenance, less noxious gases, less fire hazard, simply less overall work and a better, cleaner cut. The torch trigger can be moved for a custom fit. It can be used in finger or thumb positions. Torch head is low profile for tight spaces. High Frequency DC Plasma cuts thicker materials than standard DC plasma cutters. High Frequency Plasma cuts faster with less distortion in the work piece.
It's packed with full features like the separate machines. The Tig welds from this CT416D are clean and strong. This Tig welder is easier to use than any other Tig welder on the planet! Just flip a switch, set your amperage and weld...It's that simple. This machine will weld Steel, Stainless Steel, Moly, Ferrous,
* 50A Plasma Cutter/180 A Tig/160 A Stick Welder Combo Machine CUT518D
* Air Inverter with High Frequency
* Dual Voltages 110/220VAC under 50/60 Hz
* Maximum Severance Cut 1 Inch
* Transistors (MOSFET) is made by Fuji, Japan.
* FREE Torches and FREE Initial Plasma cutting Consumables
* 1 Year Warranty in both Labor and Parts from a trusted U.S. Company
* Condition: Brand New (Box is opened only for testing purpose)
* Mosfet: High Frequency (HF) made by Fuji, Japan
* Input Voltage: 110vac ~220vac (Auto detected, no switch is necessory)
* Input Power Frequency: 50 hz / 60 hz (Better performance under 60 hz)
* Housing Protection Grade: IP21
* Size: 21'' L x 16'' W x 11'' H
* Weight: 38 lbs (42 lbs with box)
* Certification: CE, CCC and ISO-9001 certification
* Duty Cycle: 60% at 50 amps and 100% at 35 amps (what's duty cycle?)
* Rated Input Current: 27 amps
* 3" Per minute @ 1" Steel (Severance Cut)
* 7" Per minute @ 3/4" Thick Steel
* 17" Per minute @ 1/2" Thick Steel
* Air pressure required: 60~70 psi @ 3.6 cfm
* Output Current: 15-180 Amps
* Power Usage 17 Amps @ 220VAC
* Can Weld: Steel, Stainless, Moly, Ferrous
* Duty Cycle: 60% @ 180 Amps 100% @ 105 Amps
* High Frequency Start / HF Welding
* Gas Flow: 2-5L/min (using Argon supply)
* Output Current: 15-160 Amps
* Power Usage 23 Amps @ 220VAC
* Can Weld: Steel, Stainless, Moly, Ferrous
* Duty Cycle: 60% @ 160 Amps 100% @ 95 Amps
* High Frequency Start / HF Welding
* Plasma cutting torch with 10 ft hose
* Tig Welding Torch with 10 ft hose (with long and short caps)
* Ground cable (8 ft) with clamp.
* Air filter and regulator with accessories and brackets
* You shall provide 70 psi air supply, 110vac or 220vac power plug. For tig welding, if you need argon regulator, just add 30 dollars on checkout.
