Hp 11691D 2-18GHZ 22DB coaxial directional coupler
Hp 11691D 2-18GHZ 22DB coaxial directional coupler

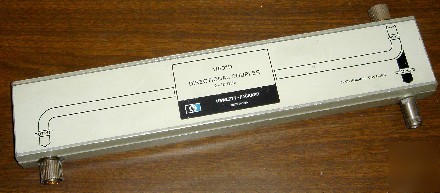

HP 11691D 2.0-18 GHz Directional Coupler
* Wide frequency coverage simplifies testing
* Ideal for leveling broadband sources
* Frequency Range: 2 to 18 GHz
* Max. Coupling Variation: ±1 dB incident to test port
* Min. Directivity : 2 to 8 GHz: 30 dB, 18 to 18 GHz: 26 dB
* SWR Primary Line Max. (50 Ohm Nom.): 2 to 12.4 GHz: 1.3, 12.4 to 18 GHz: 1.4
* APC-7 / Type-N Connections
With 30 dB directivity to 8 GHz and 26 dB to 18 GHz, the HP 11691D is useful for broadband reflectometry.
