Pines #5T bender w/ digital dial-a-bend, 1988
Pines #5T bender w/ digital dial-a-bend, 1988

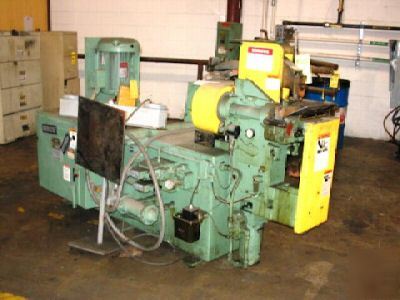

PINES #5T Pipe,Tube & Bar Bender, new 1988 [#766]
Tube Size Range: Up to 1-1/4" (1 Tube),
Centerline Radius Range: (Permitting Bending to Maximum Angle),
3-1/2" Maximum C.L.R.; 2" to 3" Minimum Work Diameter,
Bend Angle: 100 Degrees Maximum - Normal Tooling,
Operating Pressure: 2,000 PSI,
Production Speed: Up to 2,000 Bends Per Hour,
Variable Ram Speed Control; Height from Floor to Dies: 40",
Welded Steel Bed with Integral Oil Reservoir in Base,
Dual Die Holders; Bijur Automatic Lubricator,
Electrical Controls; P/B Operations (Pedestal Mounted),
Non-Ferrous Tubing Y.P. to 25,000 PSI: (2) 1" x .072" Wall,
Mild Steel Y.P. 40,000 PSI: (2) 1" x .065" Wall,
Stainless Y.P. 60,000 PSI: (2) 1" x .049" Wall,
Steel Pipe Schedule 80: (2) 3/8",
Square Tube (Mild Steel): (2) 7/8" x .035",
Round Bar (Mild Steel): (2) 5/8",
Square Bar (Mild Steel): (2) 1/2",
Dimensions, Approx. 64" L-R x 87" F-B x 60" H,
Temporary Email: T.brooks@dontscrapit.com (Terry Brooks)
