#gcu-12" red ring nat broach univ diag gr shaving mach
#gcu-12" red ring nat broach univ diag gr shaving mach

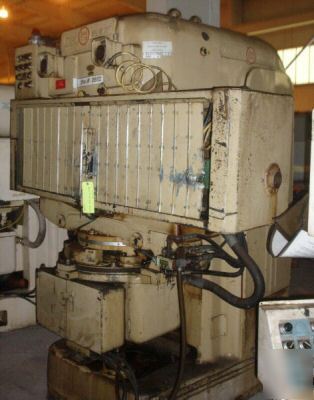

#GCU-12" RED RING NATIONAL BROACH UNIVERSAL
New 1960, Serial No. GCU-2195, Model GCU-12"
One (1) Set Of Precision Matched Tailstock &
Semi-Auto Load w/Pneumatic Tailstock
Dial Indicator For Crossed Axis Setting
Barnesdrill Magnetic Chip Separator
Operator's Manual, Parts List, Wiring Diagram
Min./Max. Pitch Dia. Work............... 1"-12"
Min./Max. Pitch Dia. Work............... (24.5-304.8mm)
Diametral Pitch Of Work................. 4-20 DP
Dia Pitch Of Wk......................... (6 - 1.25 Mod)
Maximum Length Between Centers.......... 23.125"
Maximum Length Between Centers.......... (587.375mm)
Maximum Stroke (Crown Shave)............ 5"/(127mm)
Cutter Diameters Utilized............... 7" & 9"
Cutter Diameters Utilized............... (177.8mm)
Cutter Diameters Utilized............... (228.6mm)
Machine Overall Length.................. 46"/(1168mm)
Machine Overall Width................... 55"/(1397mm)
Machine Overall Height.................. 80"/(2032mm)
Machine Net Wt (Approx)................. 7,100 LBS.
Machine Net Wt (Approx)................. (3227 kGs)
NOTES: Suitable For The Finish Shaving Of Spur
& Helical Gears Up To 12.75" (324mm) Diameter, &
5.5" (138mm) Face-Width, Via The "Crossed-Axis"
PRICE: F.O.B. Cincinnati, OH........... $12,500.00
All machines/equipment subject to prior sale.
Temporary Email: CarrieBeck@dontscrapit.com (Carrie Beck)
