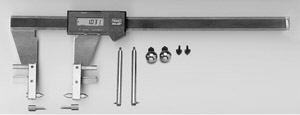

Flexbar digital multi-gage
Flexbar digital multi-gage
A Multi-Function, Precision Measuring Instrument with Virtually Unlimited Application Adaptability
With today's high costs for measuring equipment and increased inspection and metrology requirements, the FLEXBAR DIGITAL MULTI-GAGE SYSTEM provides a highly effective and economical solution for a myriad of measurement applications including:
* General I.D. & O.D. Measurements.
* Thread Pitch diameter, I.D. or O.D.
Introducing the latest in electronic measuring instrument technology...the Flexbar Multi-Gage utilizes a Preisser DIGI-MET electronic scale featuring Sylvac Direct RS-232 Output. Using a totally new, high accuracy capacitive sensor, DIGI-MET PLUS gages can be connected to any computer, data collector or printer without an interface. Other new features include:
* Large, high contrast LCD display.
* DIGI-MET electronic functions.
* Low drain lithium battery (2-3 yr life).
* Scale accuracy to DIN 862.
* New optoelectronic cable available for
* Resolution: .0005" (.01mm).
* Direct inch/metric conversion.
* Measuring/tracking speed: 60"/sec.
* LCD display indicated in/mm, hold, PRESET and zero functions.
* Completely hardened throughout stainless steel construction.
* Hold feature freezes display for later viewing -perfect for hard to reach measurements.
Any Flexbar System Precision Indicator Gage Balls can be affixed in-line for center to center measurements. They can also be attached horizontally for other measurement applications.
Using optional mounts for the Brew-Techâ„¢ Adjustable Thread Gage System, the FLEXBAR DIGITAL MULTI-GAGE simplifies the measuring process for outside and inside threads.
FLEXBAR MULTI-GAGE ORDERING: Flexbar Digital Multi-Gage Basic Kit No. 19230 and No. 19230-L Includes:
* Combination Tapered/Flat Tips
* Pointed Groove Measuring Tips
* Pair of 1 1/4" Dia. Gage Balls
* Durable Molded Plastic Case
Model No. 19230, Digital Multi-Gage Basic Kit.
* 0-11 1/2" Outside Measurement
* 1 13/16" to 13 1/2" Inside Measurement
* Above ranges may vary nominally according to accessories used and applications
