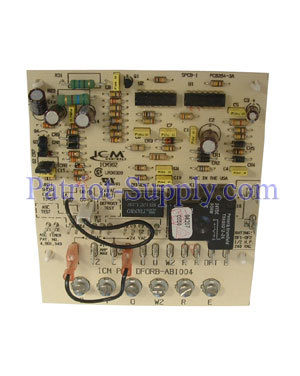

ICM302 defrost timer for heat pump ICM302C icm 302
ICM302 defrost timer for heat pump ICM302C icm 302
Defrost timer with High power fan relay output. Low cost. Replaces ICM DFORB. Time and temperature control with integral anti-short cycle timer. Outdoor fan and reversing valve relay integrated into design. Field wiring connections provided. INPUT: Voltage: 18 to 30 VAC, Frequency: 50/60 Hz, Power Consumption: 1 watt max. OUTPUT: Type: Relay, Form: SPST, N.O., Rating: 1 amp @30 VACTIME DELAYS: Anti-Short Cycle Delay: 5 minutes, Defrost Time: Fixed 10 minutes ±5%, Interval Time between defrosts: Pin-selectable 30/60/90 minutes, Power on Reset Time: 500ms, Test time: Short across test terminals reduces test time 256x.
REPLACES- NORDYNE: 621301A, 621579B, 621579-C, 917178, ICM: DFORB-
