Excel vertical machining center -fanuc 21-mb 1998" v.g.
Excel vertical machining center -fanuc 21-mb 1998" v.g.

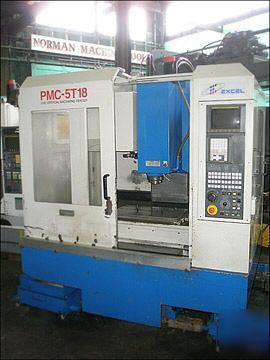

EXCEL VERTICAL MACHINING CENTER
SPINDLE CUTTING TIME IS 5,808 HRS.
Table Longitudinal Travel (X axis) 20.08"
Table Crosswise Travel (Y axis) 16.14"
Spindle Head Vertical Travel (Z axis) 18.11"
X- and Y-axis : 24 ,000mm/min. 944.88ipm
Z - axis : 20,000 mm / min. 787.40 ipm
1 - 4, 000 mm / min. 0.004 - 157 ipm
Distance Between Table Surface and Spindle
Distance Between Column and Spindle Center 16.81"
Spindle Speed Range 100 – 8, 000 rpm
Spindle Motor 7.5 HP / 5 HP (continuous)
Tool Selection System Random bi - directional
Air Supply Air pressure : 71.1 lb
(Air compressor's capacity : more than 2HP)
Sun Plate (Drilled and Tapped): 17†x 27†x 1 ¾â€
Required Floor Space (L X W) 86.61" X 102.36"
SPINDLE CUTTING TIME IS 5,808 HRS.
