Filtrine pcp closed loop chiller,compressor hp 5
Filtrine pcp closed loop chiller,compressor hp 5

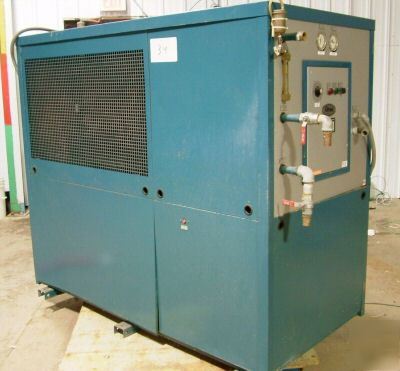

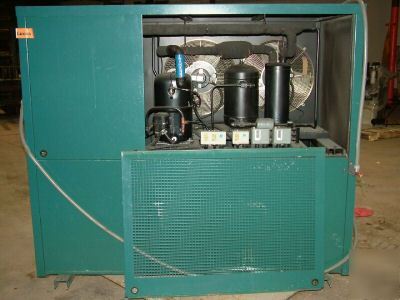

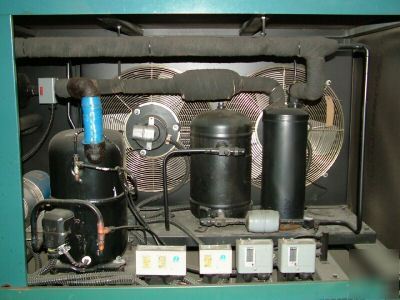

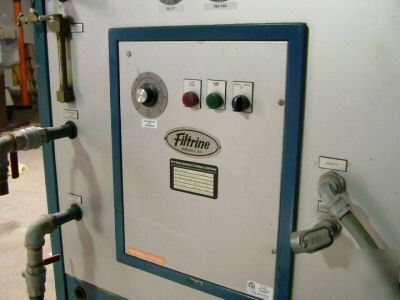

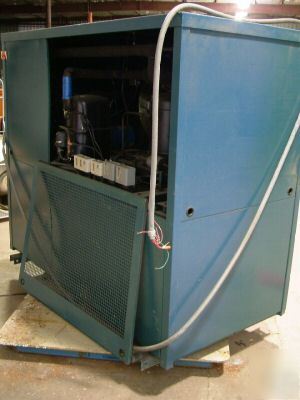

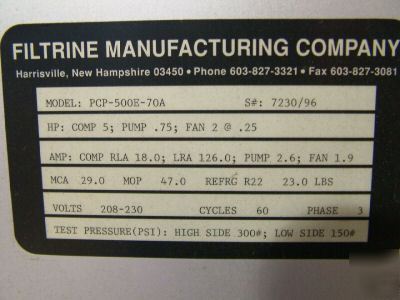

Filtrine Manufacturing Company: PCP Closed Loop Chiller. Model: PCP-500E-70A. Serial# 7230/96.
HP: Comp 5, Pump: .75, Fan 2@ .25.
Amp: Comp RLA 18.0, LRA 126.0, Pump: 2.6, Fan 1.9. mca: 29.0 , mop: 47.0, refrg: r22 23.0LBS.,
Volts: 208-230. Cycles: 60, ph: 3. Test Pressure (PSI): High Side: 300#, Low Side: 150#.
Height: 62", Width: 36", Depth: 82", Weight: 1285 lbs., which includes palletizing.
PCP - CLOSED LOOP CHILLERS Use a storage type cooling tank to provide close temperature control of recirculating coolants. The tank is sealed to prevent coolant evaporation and fouling, and supplied with a liquid level gauge, fill port and clean out. The pump recirculates coolant at constant pressure and flow.
