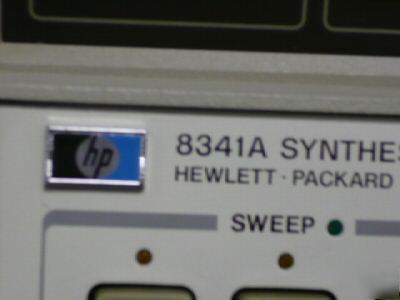

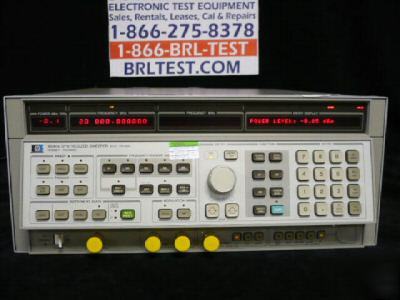

Hp 8341A synthesized sweep generator 20GHZ opts 004,007
Hp 8341A synthesized sweep generator 20GHZ opts 004,007

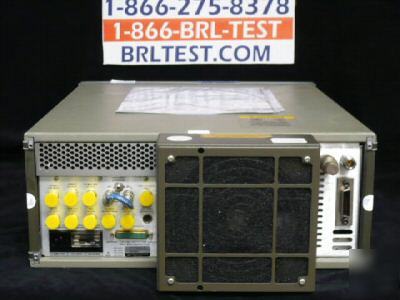

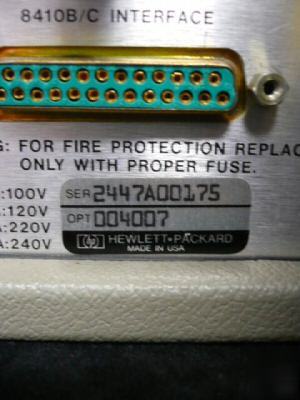

004 - Rear Panel RF Output
007 - Relaxed Phase Noise specifications
* Tested and Working within Manufacturors Specifications
The 8341A synthesized sweep generator offers superior resolution of 1 to 4 Hz over the frequency range of 10 MHz to 20.0 GHz. Output is generated by an indirect synthesis technique that yields low single-sideband phase noise. This makes the 8341A an excellent source for use in conjunction with microwave network analyzers like the 8510B. The indirect synthesis technique also gives the 8341A a very fast CW switching time of typically better than 35 ms. A fast phase-lock feature can also be enabled to give switch times between 11 and 22 ms depending on absolute frequency and step size.
* Frequency range: 10 MHz - 20.0 GHz
* Frequency resolution: 1 to 4 Hz
* Output range: +10 dBm to -20 dBm
* Output level resolution: 0.1 dB
* Internal level accuracy: ±0.9 dB
* Internal flatness: ±0.6 dB to ±1.5 dB depending on output level range
* Phase noise: -57 dBc to -107 dBc / 1 Hz noise bw
Long term stability is excellent at 1x10-9/day
Sold with 7 day right of return if unsatisfied.
All purchases outside of North America must be made by wire transfer only.
Call BRL Test with any questions
