940041 ISD4004 voice recording & playback kit - 8MIN
940041 ISD4004 voice recording & playback kit - 8MIN

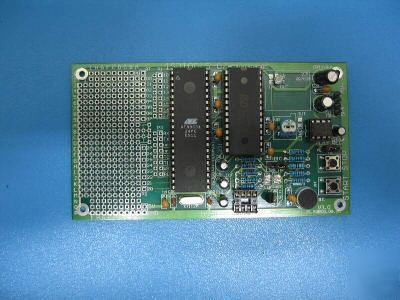

AT89C51 Controlled ISD4004 Voice Recording & Playback Demo / Development Kit, 8 ~ 16 minutes
The ISD4004 ChipCorder® series provides high-quality, 3-volt, single-chip record/playback solutions for 8- to 16-minute messaging applications ideally for cellular phones and other portable products. The CMOS-based devices include an on-chip oscillator, anti-aliasing filter, smoothing filter, AutoMute® feature, audio amplifier, and high density multilevel Flash memory array.
The ISD4004 series is designed to be used in a microprocessor- or microcontroller-based system. Address and control are accomplished through a Serial Peripheral Interface (SPI) or Microwire Serial Interface to minimize pin count.
Recordings are stored into the on-chip Flash memory cells, providing zero-power message storage. This unique single-chip solution utilizes Winbond’s patented multilevel storage technology. Voice and audio signals are directly stored onto memory array in their natural form, providing high-quality voice reproduction.
(The seller could help you on full series ISD voice ICs, please contact seller.)
- AT89C51 controller with program;
- ISD4004-08MP, 8min, Hi-quality record / playback;
- LM386 for a Speaker audio ouput;
- Blank PCB area (60 x 30 mm)
ISD4004 Series Chipcorder : http:// /mambo/content/view/156/286/
Product Brief : http:// /products/isd_products/chipcorder/productbriefs/4000_product_brief.pdf
Datasheet : http:// /products/isd_products/chipcorder/datasheets/4004/ISD4004_Rev1.2.pdf
940041 AT89C51 + ISD4004 Kit (this item)
940042 2pcs ISD4004-08MP ICs, 8min chip, hi-quality.
940043 2pcs ISD4004-16MP ICs, 16min chip, long-time.
2. Speed Post / EMS: takes 3-5 days to your hands. Fixed US$15 for US, AU, JP; US$20 for CA, UK, FR, GE, IT, SP etc. Others Country, please ask me.
