Dow-key spdt sma switch dc-18 ghz type 401R-3908
Dow-key spdt sma switch dc-18 ghz type 401R-3908

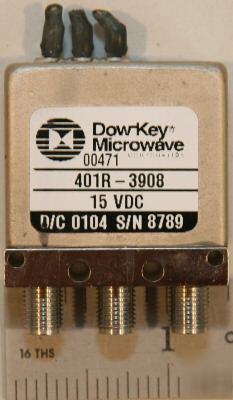

Dow-Key SPDT Latching SMA Switch DC-18 GHz Model 401R-3908
Removed From Equipment - Untested
Dow-Key 401R-3908 Specifications:
* Frequency Range: DC to 18.0 GHz
* VSWR (Max), DC-1 GHz: 1.10:1
* VSWR (Max), 1-4 GHz: 1.15:1
* VSWR (Max), 4-8 GHz: 1.2:1
* VSWR (Max), 8-12 GHz: 1.3:1
* VSWR (Max), 12-18 GHz: 1.35:1
* Isolation (Min), DC-1 GHz: 85 dB
* Isolation (Min), 1-4 GHz: 80 dB
* Isolation (Min), 4-8 GHz: 70 dB
* Isolation (Min), 8-12 GHz: 65 dB
* Isolation (Min), 12-18 GHz: 60 dB
* Insertion Loss (Max), DC-1 GHz: 0.1 dB
* Insertion Loss (Max), 1-4 GHz: 0.15 dB
* Insertion Loss (Max), 4-8 GHz: 0.2 dB
* Insertion Loss (Max), 8-12 GHz: 0.3 dB
* Insertion Loss (Max), 12-18 GHz: 0.35 dB
* Switching Time: 15 mS Maximum
* Operating Mode: Pulse Latching
* RF Termination (inactive port): Reflective, Open
* Special Option: Reverse Polarity
Dow-Key 401 Series Latching SPDT Data Sheet
* Combining 'Small' items with other purchases is at the same rate of $1.50 for each additional 'Small' item.
