8051 series mcu learning board, lcd, 7-seg led, key sw
8051 series mcu learning board, lcd, 7-seg led, key sw

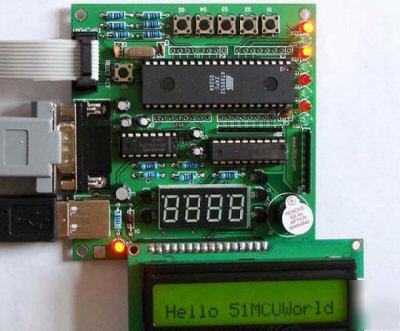

8051 series MCU learning board, LCD, 7-seg LED, KEY SW
* This is for the development of 8051 series at early & intermediate learners
* Designed to help users reduce costs and speed up the learning users to quickly enter the single-chip microcomputer design
* Provide a help users to quickly begin the journey of learning MCU hardware platform.
* Provide large amount of practical experiment routines and rich hardware resources
* Allow users access to the MCU development and application processes are understood.
* Experimental routines, including LED run lights, synchronized lights, Bomadeng, buzzer, buzzer music, digital control and digital tube scanning, interrupt button, button enquiries, RS232 serial ports, LCD 1602, step-by-step learning.
The use of the most popular KEILC51 software, users no longer need to purchase any emulator or programmer, and other development tools.
Development board three chips are used welding base, the development of user-friendly learning to use the resources; MCU 32 I / O leads all, and user-friendly functionality expansion of the 74 board chips used primarily on the HC573 data latches, and this will allow the 1602 LCD and digital display at the same time; MAX232 is used mainly to the power-conversion; LED lamps can be used in the design of the water feature lights and Bomadeng; keys in the circuit as input devices major role ISP_JTAG socket can let users download by ISP-line access.
F) 4 digit 7-segment LED digital control
1, QC test IC-51 development board
2, 1602 LCD with backlight (green screen)
