1" 6 way hydraulic diverter valve max 300 bar
1" 6 way hydraulic diverter valve max 300 bar
If you have any problems or require any assistance please don't hesitate to call.
If you would like any additional information please feel free to contact us:

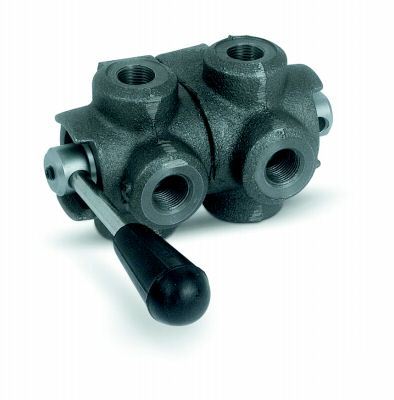

1" 6 WAY HYDRAULIC DIVERTER VALVE.
6 Way divertors are made up of two 3-way diverters coupled: each of the 2 parts are used to divert th einlet flow towards two ports. The single lever controls both the parts at the same time. It's ideal to control 2 actuators.
* Low leakage. Closed available on request.
* Suitable for all hydraulic applications.
Connect P and P' to the 2 pressure flows, Ports A and B to the first actuator and ports A' and B' to the second actuator. With lever in position 1, P is connected to A and P' to A'; with lever in position 2, P is connected to B and P' to B'. With lever in central position all ports are connected to each other (open centre)
PLEASE NOTE 17.5% VAT WILL BE ADDED TO THE FINAL INVOICE.
We specialise in all types of hydraulic components. If you cannot see what you want then send us an email to sales@flowfitonline.co.uk
We have the latest hydraulic components and equipment, with fully trained experienced hydraulic technicians who
work with hydraulic components and applications on a daily basis.
In the unlikely event that a return is requested, all returns must include all original items undamaged, in re-saleable condition, all original packaging including manuals, warranty forms, etc.
All products have 12 months warranty.
