Hp 5301A 10 mhz counter hp 5300A frequency counter
Hp 5301A 10 mhz counter hp 5300A frequency counter
This is designed as an AC/DC instrument, however the battery doesn't hold a charge anymore.

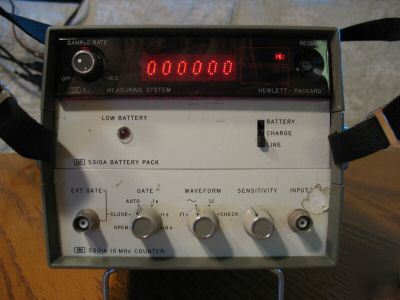

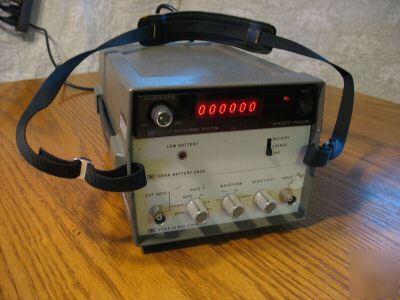

The 5301A Frequency Counter Module is for use with the 5300A Mainframe.
* Frequency Range: 10Hz to 10MHz
* Sensitivity: 25 mV rms (50Hz to 1MHz), 50 mV rms (10Hz to 10MHz); 150 mV p-p pulse at minimum pulse width (50 ns)
* Gate times: Manually selected 0.1, 1, or 10 seconds; Auto Position selects gate time to 1 second for max. resolution
* Accuracy: ±(1 count + time base accuracy)
* Features included: Overload protection, Selectable trigger level (positive, negative, or 0 V), and External Gate Input
We take great pride in giving the most accurate descriptions of the items we list ( flaws and all!).
