2" pines model #2 horizontal pipe tube and bar bender
2" pines model #2 horizontal pipe tube and bar bender
Photo Sharing and Video Hosting at Photobucket

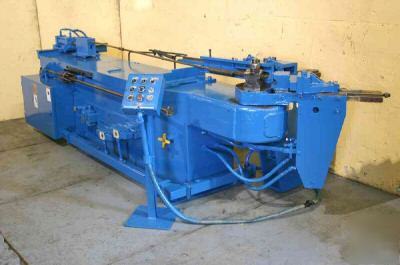

2" PINES HORIZONTAL PIPE TUBE AND BAR BENDER
SERIAL ........................................ 11230-65547
MODEL ......................................... 2
CAPACITY STEEL PIPE (SCHEDULE 80) ............. 2"
CAPACITY NON-FERROUS TUBE (Y.P. TO 25K PSI) ... 3" X .188"
CAPACITY STEEL TUBE (Y.P. TO 40K PSI) ......... 3" X .109"
CAPACITY STAINLESS TUBE (Y.P. TO 60K PSI) ..... 3" X .065"
CAPACITY SQUARE TUBE (MILD STEEL) ............. 2-1/2" X .083"
CAPACITY ROUND BAR (MILD STEEL) ............... 1-7/8"
CAPACITY SQUARE BAR (MILD STEEL) .............. 1-11/16"
MAXIMUM RADIUS ................................ 12"
MAXIMUM BEND ANGLE ............................ 180 DEGREE + OVERBEND
MAXIMUM TUBE LENGTH OVER MANDREL .............. 7'5"
BENDING ROTATION .............................. COUNTER CLOCKWISE
AVERAGE BENDING ARM SPEED ..................... 5-1/2 RPM
OPERATING PRESSURE ............................ 2000 PSI
8-POSITION DEGREE OF BEND SELECTOR ............ YES
HYDRAULIC MANDREL EXTRACTOR & CLAMPING ........ YES
BIJUR LUBRICATION ............................. YES
MOTOR ......................................... 7-1/2 HORSEPOWER
CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
