New velleman HPS40 12MHZ personal scope 40MS/s
New velleman HPS40 12MHZ personal scope 40MS/s
Internet Security By ControlScan Internet Security By ControlScan Internet Security By ControlScan Internet Security By ControlScan
* 5mV to 20V/div in 12 steps
* 50ns to 1hour/div time base in 34 steps
* X and Y position signal shift

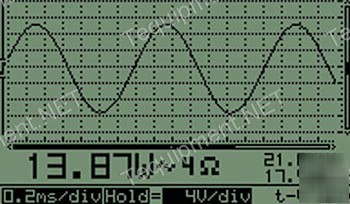

* audio power calculation (rms and peak) in 2, 4, 8, 16 & 32 ohm
* dBm, dBV, DC, rms ...measurements
* signal markers for Volt and Time
* frequency readout (through markers)

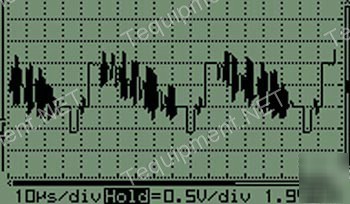

* recorder function (roll mode)
* signal storage (2 memories)
* high resolution LCD 192x112 pixels
* optical isolated RS232 output for PC
* flexible carry protection holster
* insulated safety probe
* RS232 connection lead (to DB9)
* handy rigid carry case

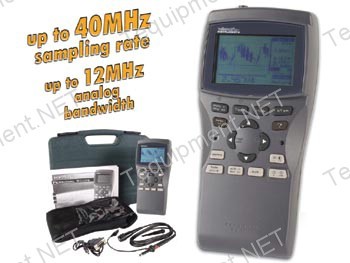

Our goal with the HPS40 was to develop a user-friendly, feature-packed and genuinely "hand-held" oscilloscope. A number of characteristics were on our wish list: low noise, high sensitivity, modest weight, a backlit LCD and a choice between regular batteries or rechargeable ones. Furthermore, the scope also offers a selection of 5 different screen layouts. Both novices and professional users will admire the fast and fully automatic setup function, allowing them to perform measurements without physically touching the unit! Floating measurements are completely safe thanks to the battery-powered operation and the (included) fully insulated measuring probe. These features make the HSP40 indispensable to the professional user, service centers and even to the hobbyist.
Models, Options, & Accessories
HANDHELD OSCILLOSCOPE 12MHz BANDWIDTH
HANDHELD OSCILLOSCOPE 2MHz BANDWIDTH
PERSONAL SCOPE 10MS/s - SPECIAL EDITION
*NOTE: There is a $50.00 minimum on all Velleman orders
40MS/s for repetitive signals (10MS/s for single shot events)
(-3dB)From 5MHz at 5mV/div to 12MHz at 50mV, 1V & 20V /div
1Mohm // 20pF (standard oscilloscope probe)
100Vpeak (AC + DC), 200Vpeak-peak (AC only)
DC, AC and GND (GND for auto zero reference)
Run, Normal, Once, Roll mode for 1s/div and slower timebase
112 x 192 pixels with LED backlight
256 samples with 2 memories, max. 179 samples visible (256 using X shift)
(0dBm= 0.775V in 600ohm)From -73dB tot +40dB (up to 60dB with X10 probe) +0.5dB accuracy
(0dBV= 1V)From -75dB tot +38dB (up to 58dB with X10 probe) +0.5dB accuracy
From 0.1mV to 80V (up to 400Vrms with X10 probe) 2.5% accuracy
Peak to peak AC sensitivity (sine wave ref.)
0.1mV to 160V (1mV to 1000V with x10 probe) 2% accuracy
Input sensitivity range in 12 steps
5mV to 20V/division at X1 - 50mV to 200V/div at X10
9VDC/ min 300mA adapter (unregulated) 12VDC if regulated
Alkaline type AA or Ni Cd / NiMH rechargeable (5 pcs required)
Charge current for rechargeable batteries
On: 170mA, with backlight: 240mA, standby current: < 600µA
Dim- 105x220x35mm (4.13x7.95x1.38â€) Weight 450g (16oz.) ex.Batteries
