5" lucas table-type horizontal boring mill #21909
5" lucas table-type horizontal boring mill #21909

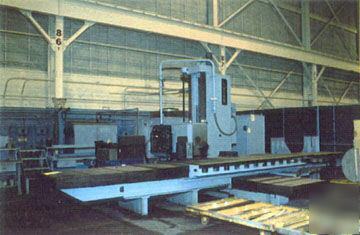

5" LUCAS TABLE-TYPE HORIZONTAL BORING MILL
New 1980, Serial No. 30DCS0405, Model 30DCS
Lucas #LM-4 4-Axis Pendant Type Manual Controller
w/Circular Interpolation & Slope Milling
Outrigger Runway Supports For Table & Saddle
IPR Capability For Tapping Or Thread Chasing
Full Temperature Control Spindle Cooler
(4) Angle Plates: (2) 4' x 3' Plates &
Spindle Diameter....................... 5"
Spindle Taper.......................... #50 ASA
Spindle Travel (W-Axis)................ 36"
Table Longitudinal Travel (X-Axis)..... 144"
Spindle-Head Vertical Travel (Y-Axis).. 60"
Saddle Travel (Z-Axis)................. 48"
Table Dimensions, W x L................ 60" x 146"
(18) Spindle Speeds, Range............. 12 to 1200 RPM
Feed Range............................. .005 to 100 IPM
Table Weight Capacity.................. 50,000 LBS
Power Rapid Traverse Rate.............. 150 IPM
Weight, Approximately.................. 64,500 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $129,500.00
All machines/equipment subject to prior sale.
