Resistomat mikroohmmetr typ 2302 digitalommetr burster
Resistomat mikroohmmetr typ 2302 digitalommetr burster
HEUTE VERKAUFEN WIR EINE SELTENHEIT PROFESSIONAL INDUSTRIAL MASHINE
PROFESSIONELLES GERÄT für FACHMÄNNER
The RESISTOMAT® model 2302 operates on the currentvoltage-method in four-terminal measurement principle according to Kelvin. A superimposed, stabilized and calibrated current produces a voltage drop at the object which is measured by a high quality digital voltmeter. This technique offers the advantage that any line resistances either in the current path or at the voltage line do not affect the measuring result. In case of very long current leads the cross section of such leads should be increased so that the burden voltage of approx. 6 V will not be lost on the leads.
The RESISTOMAT® can operate with automatic temperature compensation on test objects of copper or aluminium. An external temperature sensor affects the current feed in such a way that the measuring current is changed by that factor according to VDE specification 0472 that results from the temperature prevailing at that time. Consequently, the measuring result is always the 20 °C value of the test object. A temperature sensor is also available for other test materials.
Further information is given in the operating instructions.
RESISTOMAT ® digital ohmmeters are the modern and favourablesolution for the accurate, simple and fast measuring of low ohmic resistances. Digital ohmmeters of type 2302 have become significant not only in the field of "Thomson measurings" but have also gained importance in the classical field of "Wheatstone-technique".
Typical fields of application are resistance measurings of
meter samples in the cable industry
steel cables as used in lifts and hoists
motor and transformer windings
any kind of soldered and welded joints
metals and alloys in metallurgy
conductivity measurements in the field of twisting
testing of components in production or quality check of incoming goods
conductivity measurements on aircrafts and helicopters (negative pole to cell) and so on.
Artikelzustand: gebraucht, ungeprüft.

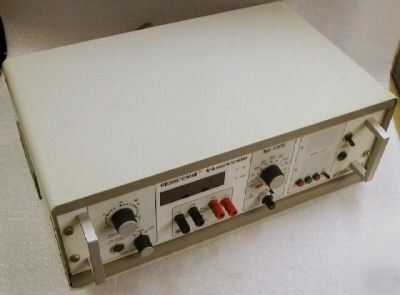

Lieferumfang: das Gerät / wie abgebildet und beschrieben/ ohne Netzteil
Ordentliche Verpackung und versicherter Versand garantiert
