Hoosier complete custom billet english wheel set
Hoosier complete custom billet english wheel set
This Means that if the Item is; Delayed, Lost, Damaged or Whatever We Are Not Responsible.
Who are We? Can you Trust Our Quality? Want Answers?
Go to which is the Worlds Largest Metal Shaping Community. This site is Full of Guys and Gals doing Everything you could imagine when it comes to Body Repair, Scratch Built Cars and Bikes, Airplane Repair, Artist, Fabricators, and Guys and Gals just tinkering around. Metal Meet has an International Meet once a Year in centrally located Oblong IL, and Many of it's Members host Smaller Regional Events to further Share the Metal Shaping knowledge. My user name on Metal Meet is Joe Andrews, the Company Hoosier Pattern either name can be searched on Metal Meets Site.
Greetings from Hoosierwheels aka Hoosier Pattern. THESE TOOLS COME TO YOU ASSEMBLED
Compare Our 3 Inch Set to Another Name Brand 3 Inch Set here:
http://www.englishwheels.net/17.html
If you want Hardened Lowers it an Additional $150.00
Or if You want Our Largest Commercially Available Upper Wheel?
Why do We Black Oxide Our Tooling?
This application not only protects the Surface of the the Components it adds a more Professional Look to Our Tooling.

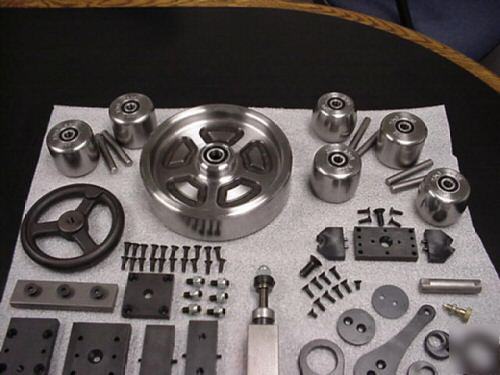

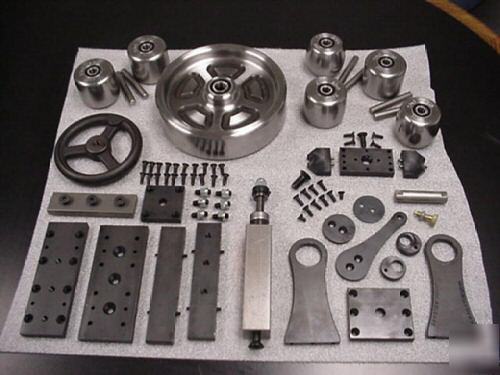

CNC Precision Machined Custom Anvils, Upper Wheel, Adjuster, Quick Release Upper Lifter, and Our Exclusive Adjustable Lower Yoke.
This is Everything except for your Frame.
No other English Wheel Manufacturer guarantees a minimum run out like we do!
You may wonder if run out critical? The answers can be found on
If you don't want to go there I'll tell you. Run out is very crucial to how your machine functions. If you have a weak machine that "flexes" then run out may not be so bad, but the flex is very bad because it causes your wheels to lose alignment. On a rigid Machine(best case scenario) run out can only be compensated by extreme pressure on your machine. Extreme pressure is no good for many reasons...It causes you to overstretch your panels which causes distortion, and it's very hard on the mechanical components such as lead screws, cradles, welds, and so on. With a well built rigid Machine it's amazing just how little pressure it takes to start shaping your panels.
After you have made your panel you will want to do a "Washout". A Washout will save you so much work! This is done by using the largest possible contact keeping in mind the radius or "form" on your panel. Gently bring the Upper and Lower Wheels to where they just touch your panels surface, then simply work the panel back and forth through your Machines Wheels. This Process will blend your high and low spots making for an Extremely beautiful panel when completed.
I was looking around and found that many Manufacturers of Anvils not only don't guarantee their run out, they also don't list what their Wheels are made from!
COMPARE OUR PRICES TO Metal Ace's Complete Kit at this link -> http://www.englishwheels.net/17.html
LOOK AT THIS PRICE FOR THEIR 2" WHEEL SET IT'S MORE THAN OUR 3 Inch Set!
MetalAce 44F English Wheel U-Weld Kit.....................$1,605.00
Their Anvils have NO Contacts, Guarantee on Run-Out, and who knows what they are made from!
Be ready to work your butt off with those Wheels!
Our Upper Wheel is much more Expensive than theirs, but the differences are like night and Day. Here is their price, but what diameter is it?
Upper Wheel with Axle, Spanner..................$185.00
Our Upper Wheel in this Set is $308.50 which is a lot more, but here's the differences:
Ours are Rough Machined, then sent out to an ISO 9000 Facility to be Heat Treated to 52-54 Hrc. After that we Finish Machine the Wheel. Those other guys use Prehard 4140 at 29Hrc.!
Our Upper Wheels have the faces relieved. Most the other guys have a little step if your Lucky and they weighs about 35lbs more! If you don't kill yourself from making so many passes on the lower Anvils because of full radius's you will from the weight of the Upper Wheel.

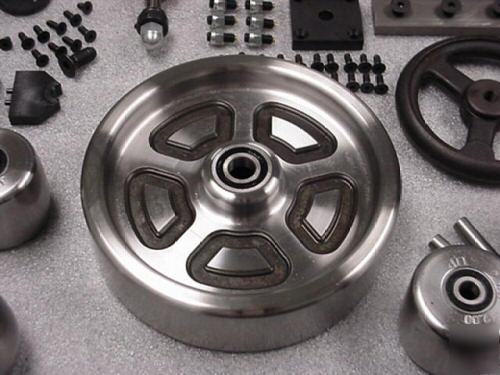

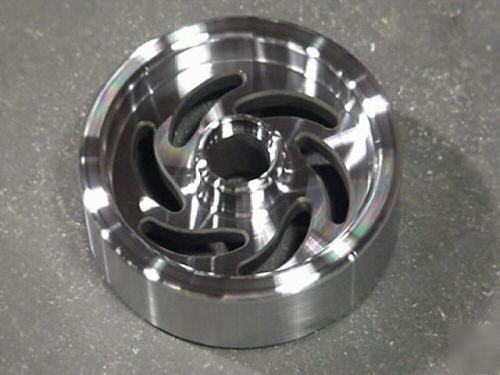

Our Upper Wheel is Machined from 4140 Alloy Steel, and it is a solid Billet like all of our High End Upper Wheels. This Wheel has been Hardened to 52-52hrc on the Rockwell C scale, that's very hard. These are not like the other guys cheap Pre-Hard Wheels, this Upper is made Righteously! This Upper will outlast your Machine and your Grandchildren as well.
We are the #1 Source for Replacing Tooling on Older Machines Because of Our Manufacturing Techniques.

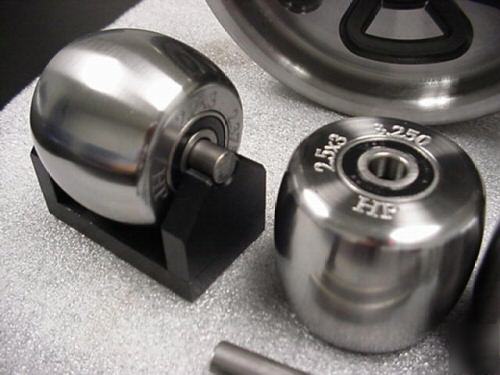

Specifications on These Wheels....
Triple Tempered in a Vacuum Furnace to 52-54 Rockwell and Oil Quenched, Then Finish CNC Machined .
Radius: 2 3/8 Radius: 3 1/4 Radius: 5
Contact: .250 Contact: .375 Contact: .500
Corner Radius: .187 Corner Radius: .250 Corner Radius: .312
Radius: 8 1/2 Radius: 12 Radius: Flat
Contact: .750 Contact: 1.000 Contact: 2.500
Corner Radius: .437 Corner Radius: .375 Corner Radius: .250
Every Corner is Radiused on our Anvils and Upper Wheels, NO SHARP EDGES HERE otherwise you invite lines to your panels! Every Anvil has been polished and the contacts have beautiful transitional radius's to create perfect panels free off pinch lines that come from Wheeling!

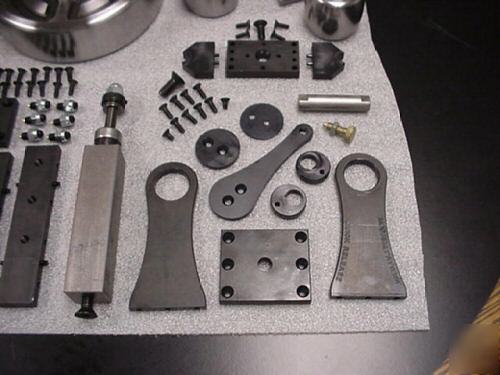

Included with this set is Our Brand New "Hoosier Lifter" This Upper Yoke will raise the Upper Wheel a ½" off your Panel. This enables you to Quickly change the Lower Anvil as well as being able to remove the panel to check your form. Putting the Panel back into the Machine is simple with this Lifter, and it enables you to not have to Wheel back over areas on a panel that are already finished. Being able to lift the Wheel a ½" off the work piece is Great because some shapes like High Crowns, Headlight Buckets, and Gas Tanks make removing the Panel a Task. Screwing a Jack many turns to remove a panel then screwing it again to get back down to the same point gets tiring fast! Do it Right with this Lifter and never make an adjustment to your Machine when checking your work piece out. There is a Spring loaded Pin that you pull out slightly, then turn the handle 90 degrees and you've moved a ¼", turn it another 90 degrees and your at a ½". Rotate it back to the original position and the Pin pops in a Hole locking the Yoke in Position.

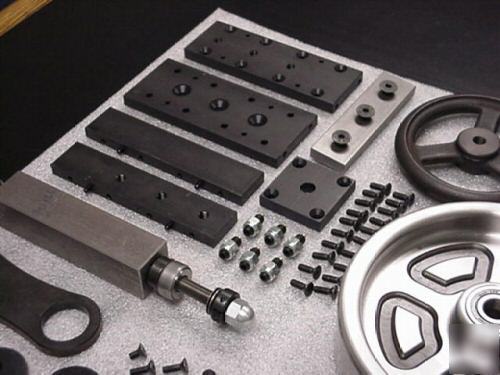

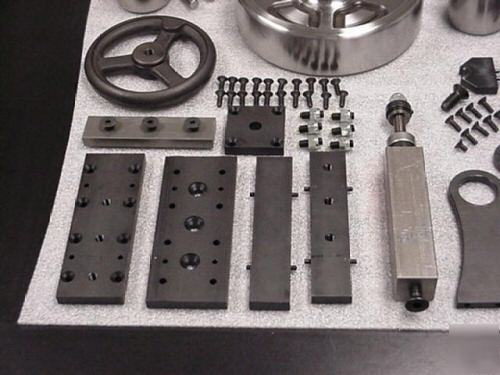

This is our Precision Machined 3 Piece lower Yoke or commonly called "cradle". Perfect alignment is here, the Base has 4) 1/4-20 Ball Nose Set Screws located every 90 Degrees around the Central Screw. These Screws are used to Raise or Lower the Yoke to Align.
We are Proud to be offering an Adjuster after many years of not selling them. This Adjuster was designed by a very close friend of mine. There is No Welding on this Adjuster, however you may want to Weld the mount(Included) to Your Frame. 100% CNC Machined to Guarantee a Precision piece of Tooling.
* May be Used as a Top or Bottom Unit.
* Over 3 Inches of Travel enables many Wheel Combinations.
* Change Your Yokes over Fast with Single Bolt Attaching Screws.
* Allows 360 Degree rotation.
* Simple to Assemble and Disassemble.
* 6 Brass Tipped Set Screws to remove all play.
* Thrust Bearing can Handle 5680 lbs of Force.
* Doweled Constructions assure perfect Assembly.
* Attaches to Frame simply, and we Include the Mount.
* Hardened Grade 8 1/2-20 Fine Pitch Lead Screw.
* Key lock Hardened Thread Insert Installed in Quill.
*Note: You will need English Allen wrenches for to Adjust and Disassemble.
If you have questions regarding anything to do with this Set please don’t hesitate to ask, e-mail brittany_lester@dontscrapit.com
or call me Toll Free at 1-(***)-480-4870 ask for Joe
E-mail me at home after hour at brittany_lester@dontscrapit.com
