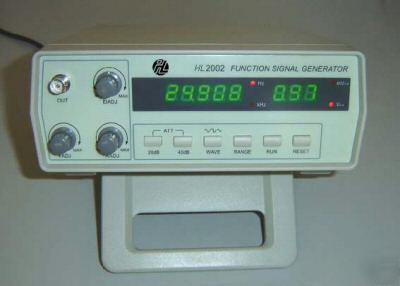

New signal generator 0.2HZ-2MHZ, 5 types signals, hq
New signal generator 0.2HZ-2MHZ, 5 types signals, hq
Car alarm system with back up battery siren, 2 points immobolizers, black wires
5" Tacho Meter with Shiftlight
Brand New (never used) in the box from manufacturer, TUV standard
This unit comes with 8 digits Green display and enunciators
3 digit voltage output display
Continuous adjustment of amplitude, Frequency and pulse duty cycle
* Brand New Function Signal Generator
* Power cable (Australian plug)
Output Frequency Range (Seven ranges)
0.2 Hz ~ 2 Hz ~ 20 Hz ~ 200 Hz ~ 2 KHz ~ 20 KHz ~ 200 KHz ~ 2 MHz
Sine, Square, Rectangle, Saw tooth, and Triangle waves
Output signal impedance: 50 ohm
Output signal amplitude (peak ~ peak value)
* Non-attenuate 2Vp-p - 20Vp-p +/- 20% continuously adjustable
* Attenuate 20 dB 0.2Vp-p - 2.0Vp-p +/- 20% continuously adjustable
* Attenuate 40 dB 20mVp-p - 200mVp-p +/- 20% continuously adjustable
* The figures are tested with load 1 M ohm. The amplitude of output signal will be half of the value with 50 ohm
Function output symmetry adjust scope
* Sine wave distortion: < 2%
* Triangle wave linear: 99% (10 ~ 90 % of output amplitude)
* Square wave rise edge time; less than 100ns (10 ~ 90 % of output amplitude)
* Square wave fall edge time; less than 100ns (10 ~ 90 % of output amplitude)
* Square wave rise and fall pulse less than or equal to 5% Vo (50 ohm load)
* The test condition 10 KHz, 5V p-p, warm up for 20m
Output signal frequency stability
(Only for 50 ohm load. At 1M load, the real output amplitude is double of the displaying value):
* Display digits: 2/3 digits (decimal point automatic select place).
* Display units Vp-p or mVp-p.
* Display error: Vo 10% +/- 1d (Vo refers to the true value of output signal)
* Resolution: non-attenuate 0.2Vp-p
Display effective digit: four of five digits.
Frequency stability: +/- 5x10-5
Dimension: 270 mm X 215 mm X 100 mm
Working temperature: 0 ~40 degree C
