Dynatech/u-z spdt sma switch dc-18GHZ model D3-413A3
Dynatech/u-z spdt sma switch dc-18GHZ model D3-413A3

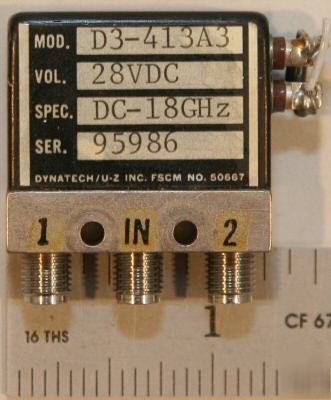

Dynatech/U-Z SPDT (single-pole, double-throw) SMA Switch DC-18 GHz Model D3-413A3
Removed From Equipment - Untested
Dynatech/U-Z D3-413A3 Specifications:
* Frequency Range: DC to 18.0 GHz
* Insertion Loss (Max), DC-3 GHz: 0.2 dB
* Insertion Loss (Max), 3-8 GHz: 0.3 dB
* Insertion Loss (Max), 8-12.4 GHz: 0.4 dB
* Insertion Loss (Max), 12.4-18 GHz: 0.5 dB
* Isolation (Min), DC-3 GHz: 80 dB
* Isolation (Min), 3-8 GHz: 70 dB
* Isolation (Min), 8-12.4 GHz: 60 dB
* Isolation (Min), 12.4-18 GHz: 60 dB
* Switching Time: 15 mS Maximum
* Actuating Voltage: 24-30 Vdc (28 Vdc nominal)
* Actuating Current: 140 mA Maximum at 28 Vdc and 72º
* Combining 'Small' items with other purchases is at the same rate of $1.50 for each additional 'Small' item.
