Spectrum analyzer/signal generator, AT5011
Spectrum analyzer/signal generator, AT5011

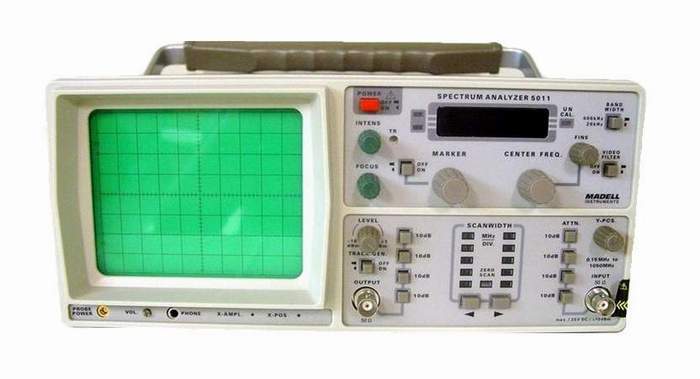

New Madell AT5011 spectrum analyzer with built in signal generator, in factory sealed box.
Center frequency display accuracy:
Resolution of frequency display:
in 1-2-5 steps and 0Hz/div.(Zero Scan)
Frequency stability; better than 150 kHZ/hour
-27dBm to +13 dBm(in 10dB steps)
-70dBc(two signals >3MHz apart)
<5dB above average noise level
2dB(without attn.) REf.: 250MHz
+10dBm, 25Vdc(0dB attenuation)
Frequency range: 0.15 MHz to 1050 MHz
Output level range: -50dBm to +1dBm(in 10dB steps and var.)
Output attenuator: 0 to 40dB (4 x 10dB steps)
Output attenuator accuracy: 1dB
Radio Frequency Interference(RFI):< 20dBc
6" CRT,8x10 division graticule
Test it in our Los Angles showroom. Call (***)614-4896 to make arrangements.
This offer is about half the price of similar products. You can find that by searching on Google with key words "5011 spectrum analyzer".
Accessories included with the AT5011 package.
