Mini-circuits low pass filter model slp-150
Mini-circuits low pass filter model slp-150

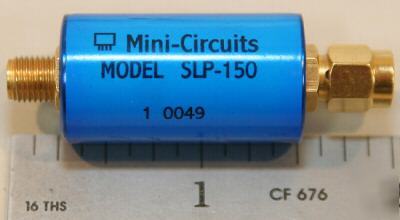

Mini-Circuits Low Pass Filter Model SLP-150
Removed From Equipment - Untested
Mini-Circuits SLP-150 Specifications:
* Passband (Loss < 1dB): DC to 140 MHz
* fco Nominal (Loss 3 dB): 155 MHz
* Stopband (Loss > 20 dB): 210-300 MHz
* Stopband (Loss > 40 dB): 300-600 MHz
* VSWR, Passband Typical: 1.7
* VSWR, Stopband Typical: 18
* Attenuaton Rate: 1.35 Typical 20dB/3dB BW Ratio
* RF Power Input: 0.5 W Maximum
Mini-Circuits SLP-150 Datasheet:
http:// /pdfs/SLP-150.pdf
