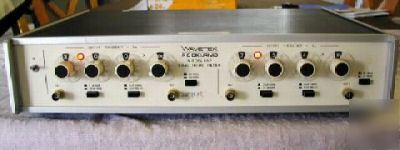

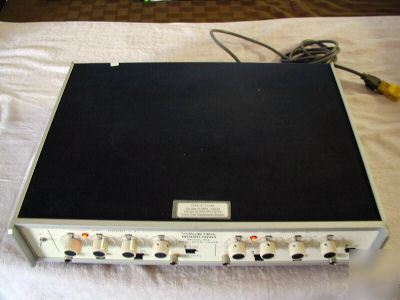

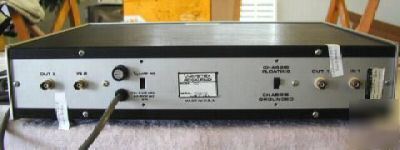

Wavetek 852 dual hi/lo variable analog filter
Wavetek 852 dual hi/lo variable analog filter
0.01Hz - 111kHz range. 3 digits resolution. Butterworth and flat delay responses. Two identical filter channels. High- and low-pass. 0dB and 20dB gain. Can be interconnected for bandpass (or doubled rollof) or band reject functions.
SPECS: *** 0.01 Hz to 111 kHz Range *** 3 digits Resolution *** Butterworth and Flat Delay Responses. CIRCUIT: single-ended, diode protected IMPEDANCE: 1 M ohm shunted to 50 pF; 75 pF in 20 dB gain. FULL-SCALE SIGNAL at 0 dB Gain: ±10 V(7.1 Vrms), DC to 300 kHz, decreasing to ±4 V(2.8 Vrms) at 1 MHz (divide these by 10 at 20 dB gain). FUNCTIONS: *** Low Pass, High Pass, Band Pass, Band Reject, Notch. *** Frequency Range and Resolution: Three 11-position switches and one 4-position multiplier *** Attenuation Rate per Channel. MAXIMUM STOPBAND ATTENUATION: *** 80 dB min on x10 K and x1 K ranges for fin.
Reasonable offers are always well come. REASONABLE ONES!
