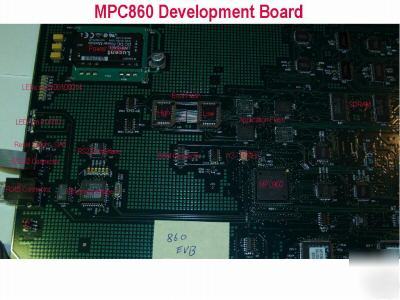

Motorola power pc MPC860 development kit MPC860 evb
Motorola power pc MPC860 development kit MPC860 evb
* 50 MHz high performance MPC860 Power QUICC (Quad Integrated Communication Controller)
* 1 MB boot flash in two sockets, 512KB installed.
* 32 MB Application Flash Memory, 16 MB installed
* Reset Switch and Hardware Watchdog
* BDM serial port availability for MPC860 emulator use
* Manufactory Installed Boot Image to support hardware test, flashing, program download and execution.
* Cygwin package, which is a Linux-like environment for Window.
* GNU/gcc suite of compiler, assembler, and linker
* 7 lessons to cover basic embedded programming skills.
* Example 4 – Flash Memory
* Example 5 – SPI, EEPROM, and Temperature Sensor
User's Manual Table of Contents:
2.3 Preparing the Board for Use
2.4 Providing Power to the Board
2.5 Connect the Board to a PC’s RS232 Port (Optional)
2.7 Load a Sample Program and Run it
5 Build Tools – Cygwin, gmake, compiler, assembler, and linker
5.3 Install Additional Cygwin Packages
5.5.2 Extract (unzip) the Distribution
5.5.3 Configure Cygwin and Bash
6.6 Example 5 – SPI, EEPROM, and Temperature Sensor
