Mini-12BIT-dac (12-bit digital analog) basic stamp, pic
Mini-12BIT-dac (12-bit digital analog) basic stamp, pic

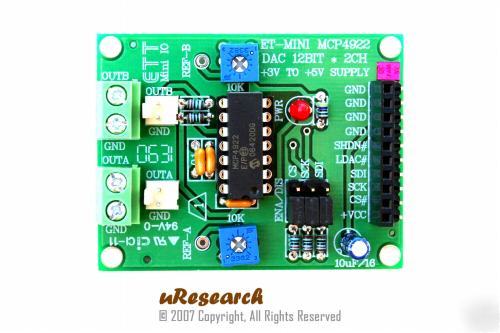

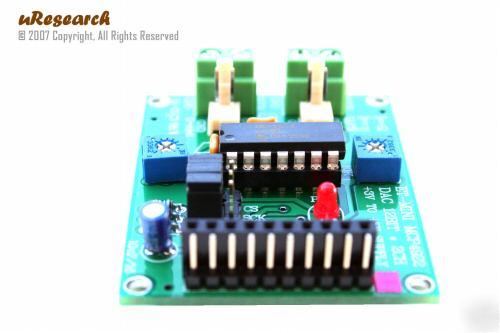

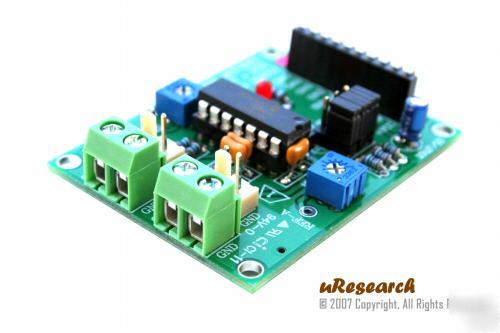

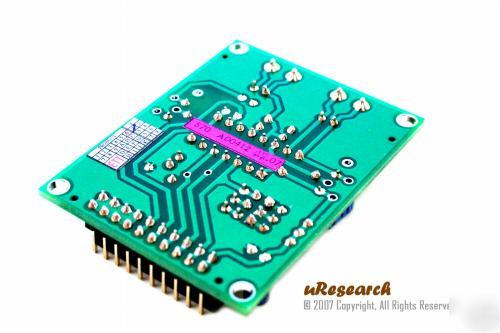

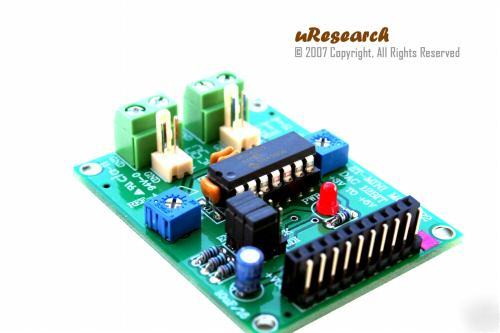

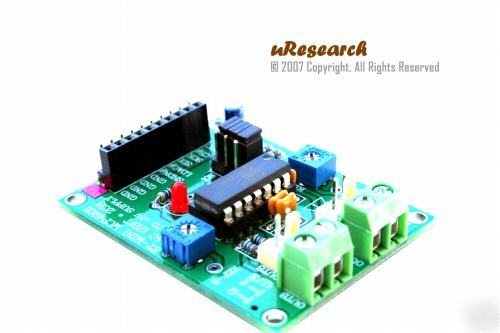

This board features innovations that set it apart from other digital-to-analog converter module. Innovations feature like on-board variable resistors for setup reference voltages, enable/disable jumpers, pull-up resistors, output terminal block and power LED. The module can be quickly connected discrete wires or header pins. The board is small and compact in size 2.20 x 1.70 inches.
The MR-MINI-12BIT-DAC is designed base on MCP4922 IC. They are DACs that provide high accuracy and low noise performance for industrial applications where calibration or compensation of signal (such as temperature, pressure and humidity) is required.
The devices utilize resistive string architecture, with its inherent advantages of low DNL error, low ratio metric temperature coefficient and fast settling time. These devices are specified over the extended temperature range. Also, include double buffered inputs, allowing simultaneous updates using the LDAC pin. These devices also incorporate a Power-On Reset (POR) circuit to ensure reliable power-up.
Please take a look at MCP4922 datasheet for more detail.
· Dual channel output and selectable output gain 1x or 2x
· Reference voltages VrefA and VrefB can be adjust from 0 to VCC via on-board potentiometer
· 2.7V to 5.5V single-supply operation
· SPITM interface with 20MHz clock support
· Four mounting holes on each corner
· Female and male header connector.
For more information please see: MR-MINI-12BIT-DAC User Manual
“This is sold fully assembled and testedâ€
For more exciting products please visit WWW.MICRORESEARCH.US
