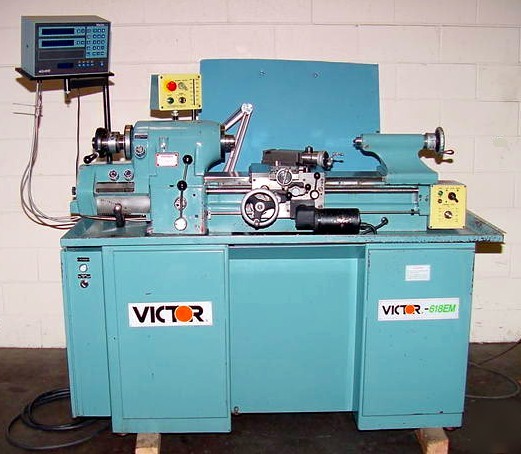

11" PRECISION ENGINE LATHE, Victor 618EM Inch
11" PRECISION ENGINE LATHE, Victor 618EM Inch
MODEL: 618-EM S/N: 8506061 NEW: 1990's
CAPACITY: WITH ROUND 5C COLLETS 1-1/16"
WITH STEP CHUCKS 1-1/16" TO 6"
SPINDLE NOSE TAPER (I.D.) 5C (10 DEGREES)
SPINDLE NOSE TAPER (O.D.) 4 DEGREES
SPINDLE SPEED RANGE 130 TO 3000 RPM
DISTANCE BETWEEN CENTERS.................. 18"
MAX. SWING OVER BED....................... 11"
MAX. SWING OVER CARRIAGE.................. 9"
MAX. SWING OVER CROSS SLIDE............... 6"
CARRIAGE POWER FEED RANGE................. 5/16" - 7"
CROSS SLIDE POWER FEED RANGE.............. 3/16" - 4"
CROSS SLIDE TRAVEL........................ 6"
QUICK-ACTION COMPOUND SLIDE TRAVEL........ 0.1"
COMPOUND SLIDE TRAVEL..................... 3"
TAILSTOCK SPINDLE DIAMETER................ 1.358"
TAILSTOCK SPINDLE TAPER................... NO. 2 MT
TAILSTOCK SPINDLE TRAVEL.................. 3-3/4"
THREAD RANGE: INCH 11 TO 108 D.P.I.
APPROX. WEIGHT............................ 1,950 LBS.
DIMENSIONS................................ 74"Lx40"Wx73"H
- ACU-RITE MASTER TP TWO AXIS DIGITAL READOUT
- SWIVEL COMPOUND WITH QUICK-ACTION COMPOUND SLIDE TRAVEL
- 1/0.5 HORSE POWER 2-SPEED MAIN DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
Machine Location: HARRISON, NJ
