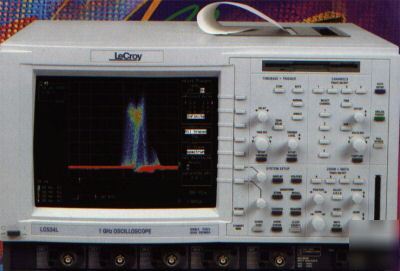

Lecroy LC534L 4 channel 1 ghz color oscilloscope
Lecroy LC534L 4 channel 1 ghz color oscilloscope
LeCroy LC534 Oscilloscope, Digital: IGHz,2GSa/s,4ch (Stand alone)The LeCroy LC534 oscilloscope is a graph-displaying device - it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.The LeCroy LC534 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the "moving parts" of a circuit represented by the signal, the frequency with which a particular portion of the signa! is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Performance Characteristics of the LC534
Main time- lowest 1 ns/divMain time-highest 1000 s/div
Trigger source External, Internal
Trigger modes Auto, Edge, Normal, Pattern, Single, State, Stop
Display modes Auto, Normal, Single, StopProgrammability/Connectivity of the LC534
Proprietary Ports to Peripheral Devices: GPIB.RS232C
Test Pattern Storage: 4 Patterns
LC534 Power RequirementsInput Power Universal (Auto Sense and Switch)
LC534 Physical DimensionsWidth: (N/A)Height: 264 mm(10.39 in) Length: 453 mm(17.83 in) Weight: 20 kg(44.09 ib)
