6†keystone k-lok butterfly valve with morin actuator
6†keystone k-lok butterfly valve with morin actuator

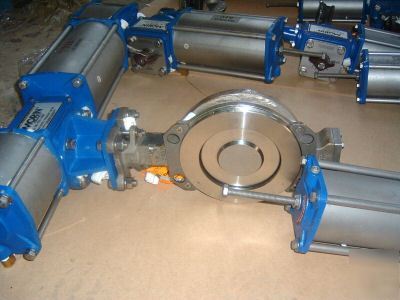

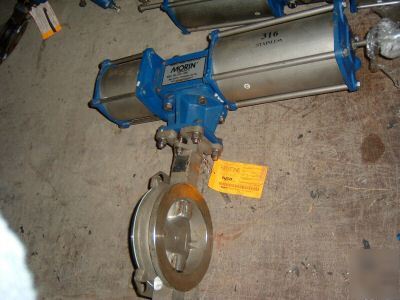

6†Keystone K-LOK High Performance Stainless Steel Wafer Butterfly Valve, Fig 360-104 with Morin Series 79B Actuator
• Integrally cast mounting pad provides direct mounting of many actuators.
• Rocker-shaped gland bridge compensates for uneven adjustment of gland nuts.
• Extended neck allows for two inches of pipeline insulation.
• Flattened body bore at stem journal ports positions stem bearings near disc, providing maximum stem support.
• Disc taper pins are tangentially positioned half in disc and half in stem, placing them in compression rather than shear, which eliminates potential for failure.
• Integrally cast disc position stop perfectly locates the disc in seat, achieving maximum seat and seal life.
• K-LOK polymer, elastomer, and fire-safe seats provide bi-directional, drop-tight closure in vacuum and throughout all pressure ranges, as well as at full rated differential pressure. A variety of materials allows optimum seat life in all applications.
6†Keystone K-LOK High Performance Wafer Butterfly Valve Fig 360-104 with Morin Series 79B Actuator
104 (updated to T124 in datasheet)
http:// /ld/KEYMC-0032-US.pdf
Designed for 'on-off' or modulating control of any quarter-turn ball, butterfly, rotary plug or damper style valve application
Output torques (lb.in) @ 60 psi
http:// /Literature/Morin%20Actuator%2079B%20tech%20data.pdf
This Keystone K-LOK butterfly valves is in excellent excellent working and cosmetic condition.
New items that were purchased for a system upgrade but never installed due to factory relocation
Full refund for returns within 30 days (see below for conditions)
Genuine Item From Factory Relocation.
Please Check out My other Items For Sale
Please contact me for details of postage costs
Returned in the condition in which you received it in.
Returned within 30 days from time you receive the item.
All returns must be mailed back fully insured.
