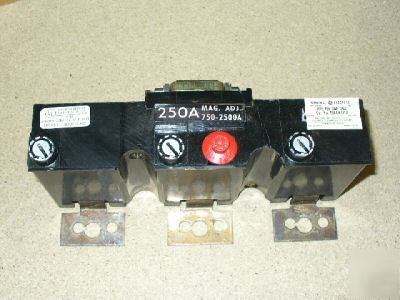

Tripper,circuit breaker
Tripper,circuit breaker
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE - 250.0 AMPERES AC AND 250.0 AMPERES DC ALL LOCATIONS
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS - 600.0 AC AND 250.0 DC ALL LOCATIONS
FREQUENCY IN HERTZ - 60.0 ALL LOCATIONS
CIRCUIT PROTECTION TYPE - OVERCURRENT ALL LOCATIONS
TRIP RELEASE METHOD - THERMAL-MAGNETIC ALL LOCATIONS
TRIP RELEASE AMBIENT TEMP RATING - 40.0 DEG CELSIUS NOMINAL ALL LOCATIONS
TRIP RELEASE CHARACTERISTIC - INSTANTANEOUS ALL LOCATIONS
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT - 125.0 ALL LOCATIONS
BODY STYLE - 1D RECTANGULAR DIMENSIONAL ENVELOPE
OVERALL LENGTH - 10.125 INCHES NOMINAL
OVERALL HEIGHT - 3.812 INCHES NOMINAL
OVERALL WIDTH - 8.250 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY - 6 UNTHREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER - 0.188 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY - 6 COMPRESSION
III STORAGE TYPE - GENERAL PURPOSE WAREHOUSE
III FRAGILITY FACTOR - MODERATELY RUGGED
