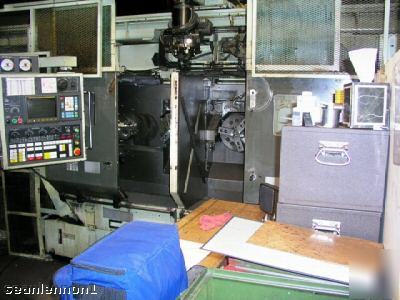

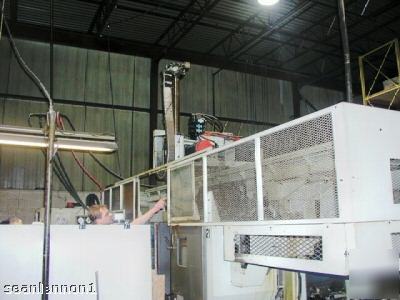

Murata muratec MW300/g twin spindle chucker (3745)
Murata muratec MW300/g twin spindle chucker (3745)

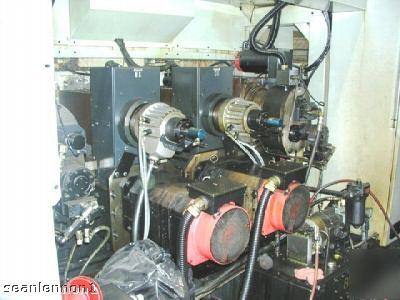

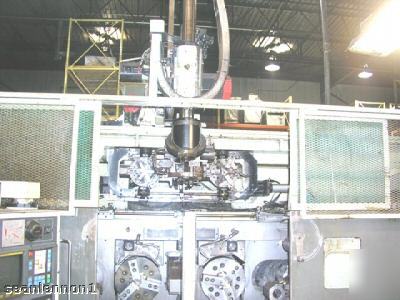

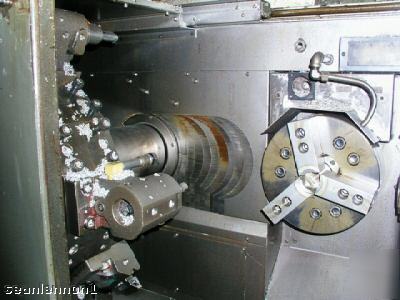

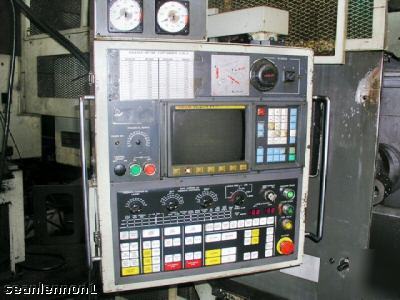

Specifications... Fanuc l6 T CNC Control... Distance between spindles 340mm... Maximum swing 295 mm... Chuck size standard 6/8†l65mm/205 mm... Max. diameter Machine with loader 120mm... Machine without loader 230mm... Max. length Machine with loader 75mm... Machine without loader l45mm... Number of turret stations (standard) 8... Stroke X-Axis (radius) 130mm... Z-Axis l45mm... Rapid traverse rate X-Axis 24 m/min... Z-Axis 24 m/min... Spindle speed Standard 45-4500 RPM... Option 30-3000 RPM... Option 60-6000 RPM... Standard tools Shank size of OD tools 20 mm... Max. shank dia. of boring bar 40 mm... Total weight (with loader tool) approx. 4400 kg... Required (machine only) L l900 mm x W l700mm... Loader system: Stroke: X Axis L 200 R l600 mm... Y Axis 485 mm... Z Axis l55 mm... Alpha-Axis l80 deg... Max. speed X Axis l20 m/min... Y Axis 30 m/min... Alpha-Axis l.5 sec/180 deg... Specifications of load/unload gripper (air pressure) Outer diameter 90 mm... Jaw stroke (diameter range 30 mm... Gripping force Air pressure 0.6 Mpa... Outside grip l80 kg... Inside grip 180 kg... Specifications of turn around chuck (air pressure Outer diameter 90 mm jaw stroke (dia. range)... 30 mm Gripping force MW12 Air Pressure 0.4 Mpa... Outside grip 120 kg Inside grip 120 kg... Workpiece weight 2 Kg x 2... Equipped with... ... Gantry Load/Unload System... 8†3-Jaw Howa chuck with seating sensor (right)... 6†3-Jaw pull down type chuck w/seating sensor L... TSK post process gauging system automatic station w/(2) I.D. Gauges, (1) face thickness gauge,... (1) I.D. gauge...Chip Conveyor...Showa mist collector... Books and manuals...500 Cutting hours
