Sonic air systems series 100 20HP blower with enclosure
Sonic air systems series 100 20HP blower with enclosure
Sonic Air Systems Series 100 20HP Blower with Enclosure
SAS Series 100 Blower in Excellent Condition with Enclosure
* This Blower may have never been used but this cannot be verified.
It appears to be in excellent condition. We have powered the unit and
ran it for roughly 20 minutes with a restriction on the discharge. We
recorded the unit running and have a link to the video added below. The
blower was run with the belt gaurd removed.
While running amperage stayed at 12 amps/480 volts and the head
was cool to the touch when we shut it down. We ran the unit for about

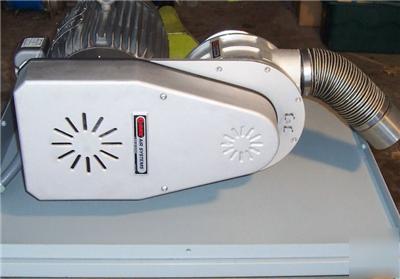

The included Sonic Enclosure does have some scratches on it as shown
in the pictures. Also there was one crack on the inside corner which we
have repaired. The enclosure offers noise reduction and protection.
The Motor , Blower Head and Frame appear to be in "as new"
condition but we were not able to verify the blowers history.
The following information cannot be guaranteed but is believed to be
* Appears to have been built in 1997
* Has 5 groove pulley system ( SAS offers upgrade to a 16
groove system now used on newer models for a fee if desired)
* Motor is 20 HP Baldor TEFC - 208/230-460 VAC 3 Phase.
* Performance Range is 100 - 1000 SCFM (170-1700 m3/hr) flow
Pressure 0.5 - 3.5 PSIG (35 - 241 mbar)
Vacuum 1.0 - 6.6 Hg (34 - 224 mbar)
Inlet filter as pictured with magnehelic gauge appears to still
be in the original packaging. The filter has small dents in a few places
but none that appear to damage the filters integrity, however it should
be closely inspected before use
is still supported by SAS in Brea California whom also have an informative
website with manuals posted. Sonic Blower applications include:
Aeration, Air Bars/Former,Air Bearings, Air Conveying, Air injection,
Air Knives, Air Scrubbers, Air Tables, Combustion Air, Cooling,
Environmental Test Chambers, Exhaust Emission Testing, Flow Benches,
Fluidized Beds, Gas Boosting, Inflation Air, Vacuum Collecting,
Vacuum Hold Down, Vacuum Pick up. Please verify this unit is compatable
with your needs before purchasing.
Sonic Air Service offers exchange rebuilt and new blower heads for a fee.
These are sold by them with warranty.
http:// /watch?v=Ko01arTUn3o
details. Pick-up at our facility is welcome. The listing price does not include
We sell selected surplus industrial and HVAC Products and are not a factory
representative for any products including those offered by Sonic Air Systems.
We make every effort to represent our listed items accurately and believe
No warranty is implied or offered on this item.
Please feel free to contact us with questions you have.
