New fluke 718-100G / 718-100US pressure calibrator
New fluke 718-100G / 718-100US pressure calibrator

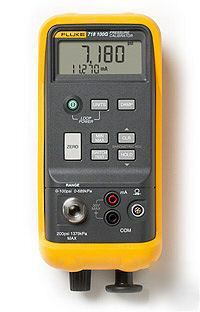

BRAND NEW FLUKE 718-100G THIS IS THE NEWER MODEL THAT REPLACED THE 718-100US
The Fluke 718 pressure calibrator family (includes 4 models) provide a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.The Fluke 718 Pressure Calibrator offers a new approach to pressure calibration. A complete, self-contained calibration solution, the 718 offers:
* Built-in pressure / vacuum hand pump, with vernier and bleed valve.
* Pressure measurement to 0.05% of full span, using an internal pressure sensor.
* Pressure measurement to 10,000 psi / 700 bar using any of the Fluke-700Pxx Pressure Modules.
* Wide range of selectable measurement units for pressure.
* Current measurement with 0.025% accuracy and 0.001 mA resolution.
* 24 volt loop power supply.
* Simple, push-button user interface.
* Rugged and reliable, ideal for field use.
* Includes NIST-traceable calibration certificate.
* Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
* Error % calculation for quicker pass/fail decision making in the field
* Best in class mA accuracy of 0.015 % for better measurement confidence and workload coverage
* Min/Max/Hold to capture changing measurements
* Switch test feature for quicker and more accurate pressure switch testing
* New 1 and 300 PSI pressure ranges mean fewer extra tools required
* 1, 30, 100 & 300 PSI ranges now available
-1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)
0.0001 psi, 0.001 mbar, 0.0001 kPa
-12 PSI to 30 PSI, (-850 mbar to 2 bar, -85 to 206.84 kPa)
-12 PSI to 100 PSI, (-850 mbar to 7 bar, -85 to 689.48 kPa)
-12 PSI to 300 PSI, (-850 mbar to 20 bar, -85 to 2068.42 kPa )
Fluke 718 series via using 700 Series Pressure Modules
29 pressure modules, 0 – 1 in H20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs
To 0.025 % of full span, per pressure module specs
Note: media compatibility per pressure module specs
Fluke 718 series via built in pump
-12 PSI or -850 mbar to full scale Supported Pressure Units; psi, in H20 (4 °C), in H20 (20 °C), cm H20 (4 °C), cm H20 (20 °C), bar, mbar, kPa, inHg, mmHg, kg/cm
Note: Drive; 20 mA into 1000 ? for battery > 6.8V; 700 ? for battery 5.8 to 6.8 V
95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C); 45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C)
EN50082-1: 1992 and EN55022: 1994 Class B
216 mm x 94 mm x 66 mm (8.50 in x 3.72 in x 2.60 in)
9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718
4 to 20 hours typical, depending on functions used
Three years (one year on pressure pump in Fluke 718)
LCD, 5 digit pressure and current simultaneous
For use with non-corrosive gasses
* All warranties are granted through the manufacturer and not through us unless the product is DOA.
* Good(s) will be replaced or exchanged in case of DOA
* Any returned non-defective item(s) is subject to 20% restoking fee
* We reserve the right to refuse service to anyone
