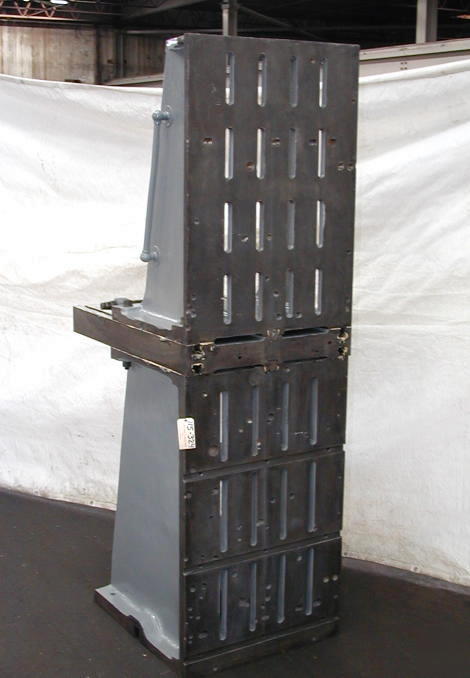

33 in x 36 in x 107 in ANGLE/KNEE FIXTURE PLATE
This Fixture plate has two separate
work mounting areas where one can
be mounted on top of the other which
increases the height of the fixture from
53-1/2" to a total of 107" tall.
In addition to this stackable feature, there is an
adjusting plate between the two fixtures which
allows up to 24" of front to back
movement of the top fixture
Work Mounting Face Size, Bottom Fixture: 33" x 53-1/2"
Work Mounting Face Size, Top Fixture: 33" x 47-1/2"
Thickness of Adjustable Plate: 5"
Depth of Base, Front to Back: 36"
Number of Mounting Slots, Bottom Fixture: 12
Size of Mounting Slots, Bottom Fixture: 1-3/8" x 12"
Number of Mounting Slots, Top Fixture: 16
Size of Mounting Slots, Top Fixture: 1-1/4" x 8"
Approx. Weight: 2,000 Lbs.
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
