Dwyer magnehelic 2000-50MM diff press gage 50MM water
Dwyer magnehelic 2000-50MM diff press gage 50MM water

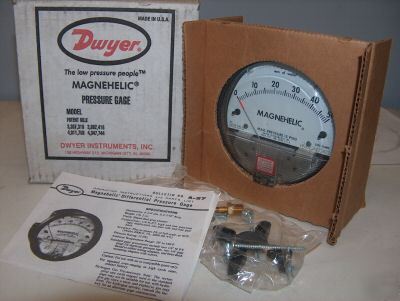

DWYER MAGNEHELIC 2000-50mm DIFFERENTIAL PRESSURE GAGE 50mm WATER
NEW ITEM WITH ORIGINAL BOX!!!!!!! 90 DAYS WARRANTY MRO
Air and non-combustible, compatiblegases. (Natural Gas option available.)
Die cast aluminum case and bezel, with acrylic cover. (MP model has polycarbonate cover).
±2% of full scale (±3% on - 0, -100 Pa, - 125 Pa, 10MM and ±4% on -00, - 00N, -60 Pa, -6MM ranges), throughout range at 70°F (21.1°C).
-20Ë Hg to 15 psig.†(-0.677 bar to 1.034 bar); MP option: 35 psig (2.41 bar), HP option: 80 psig (5.52 bar).
Relief plug opens at approximately
25 psig (1.72 bar), standard gages only. The blowout plug is not used on models above 180 inches of water pressure, medium or high pressure models, or on gages which require an elastomer other than silicone for the diaphragm.
4Ë (101.6 mm) diameter dial face.
Diaphragm in vertical position. Consult factory for other position orientations.
1/8Ë female NPT duplicate high and low pressure taps - one pair side and one pair back.
1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g).
FOR MORE INFORMATION VISIT: http:// /htdocs/pdffiles/iom/pressure/2000_iom.pdf
