Mastech VC2000 bench frequency counter 10 hz - 2.4 ghz
Mastech VC2000 bench frequency counter 10 hz - 2.4 ghz

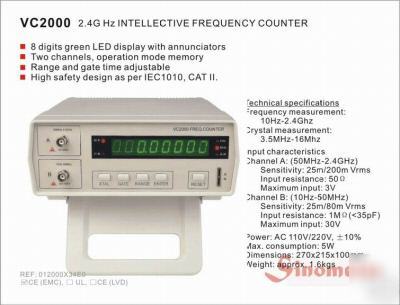

MASTECH VC2000 HQ Bench Frequency Counter
Dual Channel - 10Hz - 50 MHz & 50 MHz - 2.4 GHz
This is a very high quality bench frequency counter and comes with an AC power cable, BNC test leads and instructions. The system is brand new in the original box and comes with an excellent one year warranty. It is manufactured by Sinometer which is one of the world's largest manufacturers of test equipment.
The frequency counter has two BNC inputs for the following frequency ranges: 10Hz to 50 MHz and 50 MHz to 2.4 GHz. The frequency of crystal oscillators can also be measured within the range of 10Hz through 5 MHz. Pulse counting is also supported. Gate time selection has four ranges, the function select has five ranges, the LED is eight digits and the counter has a memory function to automatically recall the last settings after it is turned off and on.
Additional Sinometer Mastech VC2000 specifications
Operating Temperature : 40 - 120 ( 5 - 50C)
Specifications of Frequency Counter VC2000
This VC2000 is an intelligent multi-function instrument which measures Frequency, Pulse counting, Crystal. It has 4 step gate time, 5 range function select and 8 digits display.
All functions depend on single CPU, A crystal controlled temperature circuit provides constant compensation for the temperature drifting.
There are 3 input terminals on this instrument:
CHA. High frequency 50 MHz - 2,4000 MHz
CHB. Low frequency 10Hz - 50 M Hz
Crystal Oscilloscope: for crystal measurement
Crystal Oscillator Measurement
Gate Time: 0.1S,1.0S,5.0S, 10S
Accuracy: Time base deviation X frequency +- 1 d
Progressive Counting measurement
resolution: +- 1d, counting frequency: 10Hz - 4Mhz
Input sensitivity for CHA 25mVrms/200m Vrms
Input impedance: approx. 50 Ohm
Input sensitivity for CHB: No.2 range 25m Vrms/80 m Vrms
Input impedance: approx. 1 M ohm ( less than 35 pF)
Short term stability: +- 3 X 10-9/second
Long term stability: +- 2 X 10-5/Month
Temperature: +- 2 X 10-5/10oC - 40o C
