M 50 plate copper brazed heat exchanger water beer wort
M 50 plate copper brazed heat exchanger water beer wort

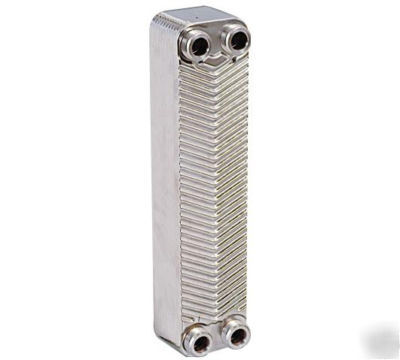

This is a high quality heat exchanger made of stainless steel with a copper brazing. It will not corrode with normal usage and is guaranteed to last for a life-time.
This is an extremely popular unit for wood burning furnaces, radiant floor systems, refrigerant systems, straight vegetable oil conversions, beer chilling and solar water heating systems. It will work for any application in which the desired result is for two fluids (liquid or gas) to exchange heat.
Warranty: You are protected by a life-time warranty against manufacturer's defects with normal usage. (Does not include usual corrosion) These units are welded professionally and will take a long time to corrode unless fluids with extreme pH levels are used (not considered normal usage if such fluids are used). Salt water tends to corrode any metal a lot faster than regular water. Such usage requires constant cleaning to ensure a long lasting unit.
.023 m^2/plate (.24 ft^2/plate)
3.0 Mpa to 4.5 Mpa (435 psi to 650 psi)
4.5 Mpa to 6.0 Mpa (650 psi to 870 psi)
-195 ℃ ~+220 ℃ (-319 F - 430 F)
F1-F3 and F2-F4 (see diag above)
Will NOT rust under normal usage (regular pH levels)
316L Stainless Steel (9% better heat transfer than 304)
Heat pump system, household type central air conditioning,
afterheatrecycling, refrigeration equipment, industry cold
water machine,cooleroil and so on
Check my store for other sized heat exchangers.
Fluid A passes from the port on the left of the heat exchanger through every other channel created by the plates to the opposite end port on the left of the heat exchanger (looking at it the long way). Fluid B passes from the port on the right through the other channels created by the plates and comes out the other port on the right side. The fluids are essentially touching each other through the plates and heat is transferred from the hot fluid to the cold fluid. (but the fluids do not mix)
